Description

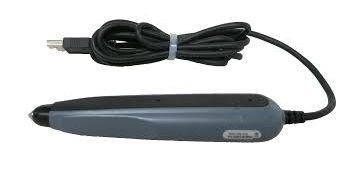

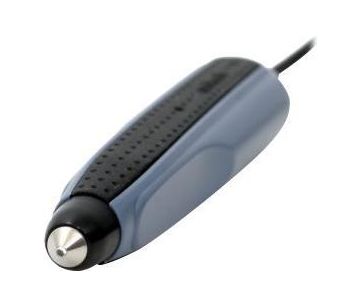

The MS100 Wand Barcode Scanner offers an ergonomic and compact design ideal for low-volume barcode scanning tasks. With exceptional accuracy, this handheld pen scanner excels in applications that involve scanning multiple barcodes from documents—perfect for libraries, ballot tracking, and small business inventory management.
Engineered with durability in mind, the MS100 features a rugged ABS plastic casing, a reliable photo sensor, and advanced data editing features. It’s available with multiple interfaces including USB, RS232, TTL, and keyboard wedge, ensuring easy integration with your existing systems.
Whether you're scanning barcodes on faded labels, damaged packaging, or wide-format documents, the MS100 delivers fast, precise results—all at a fraction of the cost of other barcode scanners.
Product Features
-
Compact, ergonomic pen-style form factor
-
High scan speed: up to 24 inches per second
-
Durable ABS plastic body withstands 1.5M drops
-
Easy to use – plug-and-play setup with no drivers required
-
Advanced data editing capabilities for streamlined workflows
-
Reads a wide range of 1D symbologies including Code 39, EAN, UPC, Code 128, and more
-
Compatible with USB, TTL, RS232, and keyboard wedge interfaces
-
Excellent for scanning documents with multiple barcodes
-
Cost-effective solution for entry-level scanning needs
-
Supports applications in libraries, SMBs, government ballot tracking, and more
Product Specifications
Sensor | Photo Sensor |
Aiming Element | 650 ~ 660nm Red LED |
Scan Rate | 4 ~ 24 in/sec (10 ~ 60 cm/sec) |
Optical Resolution | 5 mils (0.127mm) |
Depth of Field | 0.04" (1.0mm) |
Interfaces | USB, RS232, TTL, Keyboard Wedge |
Dimensions | 140mm (L) x 30 x 23mm (Dia.) |
Weight | 76g |
1D Symbologies | Code 39, EAN-13, UPC-A, Code 128, etc. |
Voltage | 5V DC ± 10% |
Operating Temp. | 0°C to 50°C |
Storage Temp. | -20°C to 60°C |
Humidity | 20%–85% RH (non-condensing) |
Shock Resistance | 1.5M drop to concrete |
Compliance | TAA Compliant |
Warranty | 15 months hardware warranty |
Features
- Wired
- Handheld
- 1D
- USB
- Serial/RS232
- PS/2 Keyboard Wedge
