Description

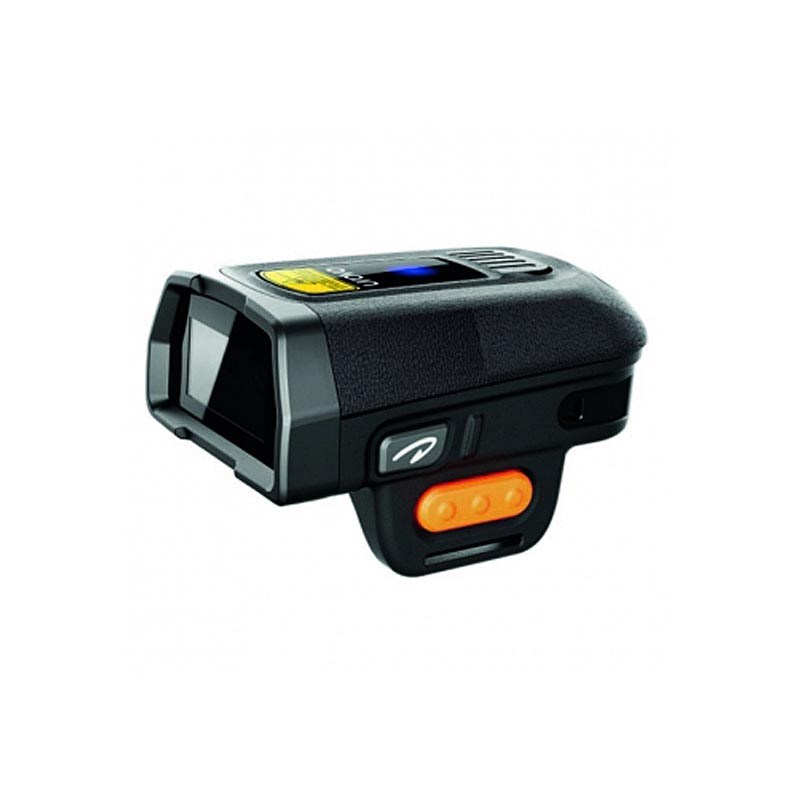

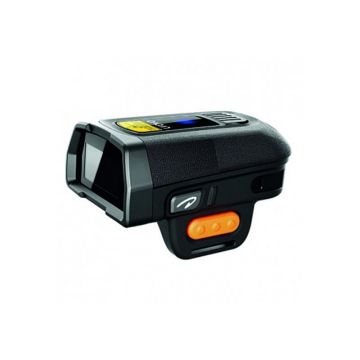

The Unitech MS632 is an ultra-lightweight and budget-friendly 2D Bluetooth ring scanner, purpose-built to streamline barcode capture in high-paced environments like warehousing, logistics, retail, and field service. Designed for single-finger operation and just 65 grams in weight (including battery), the MS632 delivers remarkable comfort during long scanning sessions—without compromising performance.
Equipped with a high-performance 2D CMOS imager, the MS632 effortlessly reads all major 1D and 2D barcodes—including PDF417 and postal codes. It supports Bluetooth 4.0 dual mode (HID/SPP) and is backward compatible with Bluetooth 2.1, ensuring seamless integration with legacy and modern devices across Android, iOS, Windows, and PCs.
Charging is equally flexible with options for Micro-USB or pogo-pin-based cradles. A customisable user-defined key allows users to assign shortcut inputs, improving efficiency in repetitive workflows. Whether you're picking, packing, or scanning in-store or in the field, the MS632 helps maximise productivity with minimal setup.
Product Features
- Lightweight & Wearable: Only 65g including a 1000mAh battery; suitable for all-day use.
- High-Speed 2D Imager: Scans both 1D and 2D barcodes, including QR, PDF417, Aztec, and postal codes.
- Bluetooth 4.0 Dual Mode: Supports HID and SPP profiles; backward compatible with Bluetooth 2.1.
- Dual Charging Options: Recharge using Micro-USB or pogo-pin-enabled 2-slot charging cradle (optional).
- Custom User Key: Assign alphanumeric or symbolic key inputs to trigger app actions.
- Ergonomic Fit: Designed for both left- and right-hand use with minimal movement restriction.
- High Performance: CMOS engine with white LED illumination and red LED aimer; 30 frames/sec scan speed.
- Versatile Compatibility: Works with Android, iOS, Windows 7/8/10 and legacy systems.
- Visual & Audio Indicators: Equipped with LED indicators and buzzer for scan confirmations.
- Ready to Use: Comes with USB cable, EU PSU, 2.4GHz dongle, and quick start guide.
Product Specifications
Specification | Details |
Scanner Type | 2D CMOS Imager |
Imager Resolution | 640 x 480 pixels |
Optical System | White LED illumination; Red LED aimer |
Scan Speed | 30 Frames/sec |
Scan Angles | Tilt: 360°, Pitch: ±45°, Skew: ±45° |
Print Contrast | Minimum 35% |
Bluetooth Version | 4.0 Dual Mode (SPP/HID); backward compatible with Bluetooth 2.1 |
Wireless Support | Bluetooth & 2.4GHz USB Dongle |
Battery Capacity | 1000mAh Lithium-ion |
Charging Interface | Micro-USB and pogo-pin cradle support |
Battery Life | Long-lasting; suitable for full-shift usage |
Weight | 65g including battery |
Dimensions | 66 x 44 x 24 mm (H x W x D) |
User Feedback | LED indicators, buzzer |
Buttons | Scan Key, Power Key, User-defined Key |
Environmental Sealing | Humidity: 5%–95% non-condensing; Operating Temp: -10°C to 50°C |
Operating Systems Supported | Android, iOS, Windows 7/8/10 |
Optional Accessories | 2-slot pogo-pin charging cradle |
Warranty | 1 Year Scanner |
Features
- Wireless
- Non-rugged
- Ring Scanner
- 2D
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- Logistics/Warehouse
- 1 Year
- New
