Description

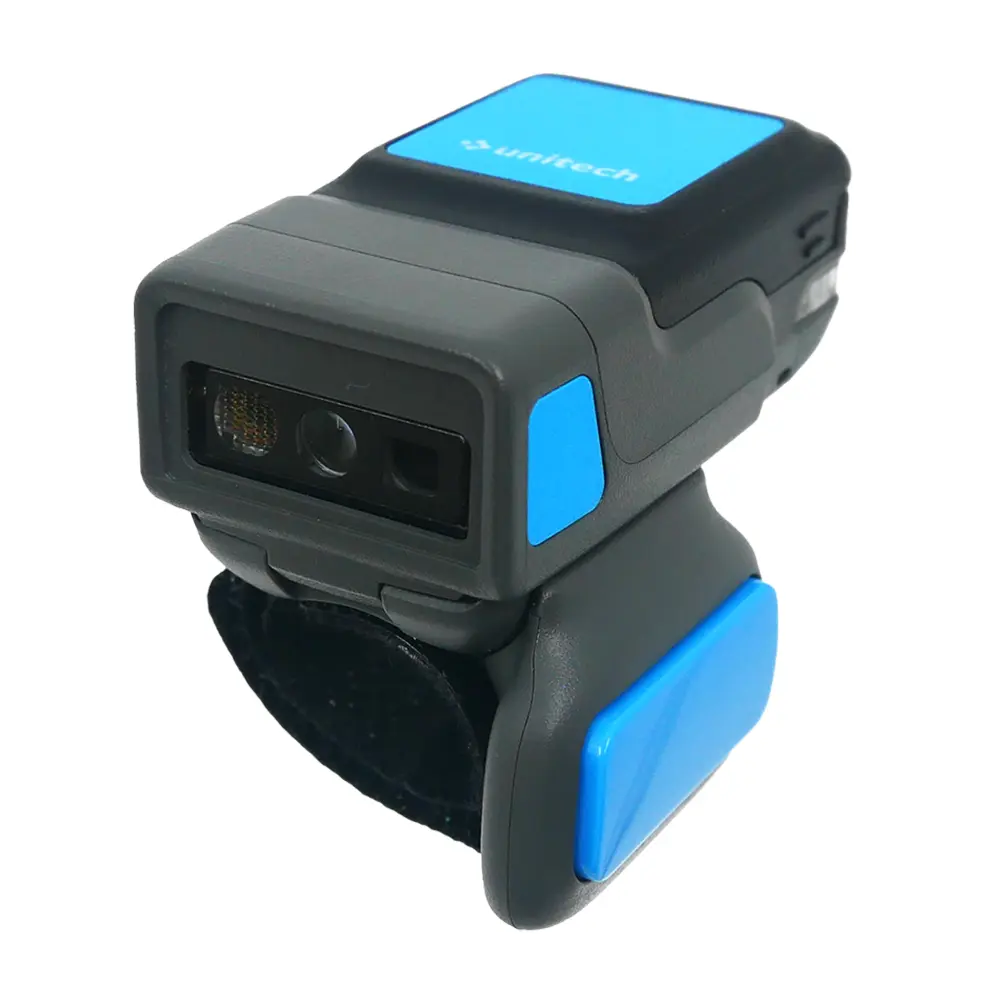

The Unitech MS633 is a compact, lightweight Bluetooth 2D ring scanner that delivers exceptional scanning performance in a wearable, hands-free format. Designed to increase productivity across retail, logistics, warehousing, and inventory environments, it supports middle-range barcode scanning up to 12 metres (with LR version), giving operators the freedom to capture data from a distance without physically handling items.
Weighing just 56 grams, the MS633 offers full-shift comfort and unmatched mobility. Its ergonomic design allows use on either hand and can be mounted on one or two fingers, offering a stable and fatigue-free scanning experience. Powered by a 600mAh rechargeable battery, it delivers up to 9 hours of continuous operation and charges quickly via USB Type-C.
Integrated Bluetooth connectivity (HID, SPP, BLE) enables seamless wireless data transmission across PCs, mobile devices, and tablets—while advanced decoding technology and Unitech’s ScanBridge Utility and Scanner SDK provide superior flexibility and integration for professional workflows.
Product Features
- Compact & Lightweight: Only 56g with battery, ideal for extended wear and hands-free operations.
- Powerful 2D Imager: Reads both 1D and 2D barcodes with a CMOS sensor (1280x960 pixels resolution).
- Exceptional Range: Standard model supports up to 49.5cm; LR version scans barcodes from up to 12 metres.
- Hands-Free Wearable: Designed to fit comfortably on one or two fingers for left or right-handed users.
- Bluetooth Wireless: Supports Bluetooth HID, SPP, and BLE protocols with up to 50m (164 ft) range.
- Quick Charging: USB Type-C fast charging with full charge in 2 hours.
- Long Battery Life: 600mAh battery lasts up to 9 hours per charge for all-day operation.
- Enhanced User Feedback: LED indicators, buzzer, and vibration for instant scan confirmation.
- Software Integration: Supports Unitech’s ScanBridge Utility and Scanner SDK for application flexibility.
- Durable Build: Withstands multiple 1.5m drops to concrete and offers ESD protection.
Product Specifications
Specification | Details |
Scanner Type | CMOS Image Sensor (1280 x 960 pixels) |
Weight | 56g (Standard model) |
Dimensions | 64.8mm (L) × 34.5mm (W) × 24.7mm (D) |
Scan Range (Standard) | Up to 49.5cm; 1.8–19.5in (varies by barcode) |
Scan Range (LR Model) | Up to 12m / 708.7in (with large barcodes) |
Bluetooth Version | HID, SPP, BLE – v4.2 (50m wireless range in open space) |
Charging Interface | USB Type-C |
Battery Capacity | 600mAh Li-ion, Rechargeable |
Battery Life | Up to 9 hours (full-shift performance) |
Charging Time | 2 hours |
Mounting Style | Finger-mounted (one or two fingers); left/right-hand compatible |
Trigger Life | 500,000 presses |
Supported Barcodes | 1D: Code39, Code128, Codabar, UPC/EAN, MSI, Telepen, more |
User Indicators | LED, Buzzer, Vibration |
Software Tools | ScanBridge Utility, Scanner SDK |
Drop Spec / Durability | 1.5m (4.9 ft) drop resistance; ESD protection |
Operating Temp | -10°C to 50°C |
Storage Temp | -10°C to 50°C |
Humidity | 5% to 85% non-condensing |
Compliance | CE, FCC, TELEC, NCC, BSMI, RoHS |
Features
- Wireless
- Non-rugged
- Wearable
- 2D
- USB-C
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 1 Year
- New
