Description

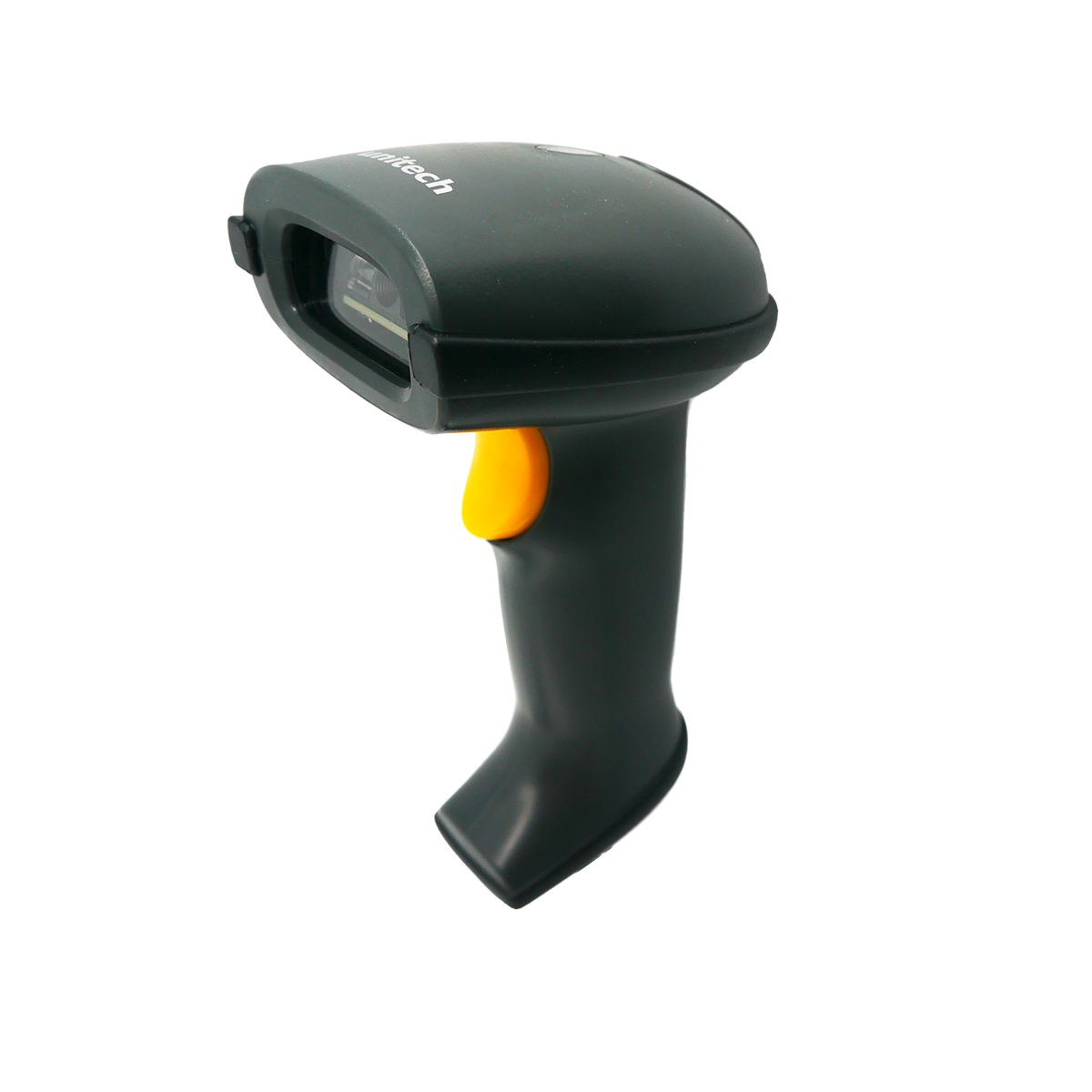

The Unitech MS838 is a dependable, budget-friendly 2D imager barcode scanner designed for high-performance scanning in retail, logistics, and commercial environments. With a fast 60 fps scan rate, this wired USB scanner captures both 1D and 2D barcodes effortlessly—whether printed on paper or displayed on mobile screens.
Thanks to its CMOS sensor, compact design, and reliable USB interface, the MS838 ensures seamless plug-and-play connectivity with minimal setup. Built to endure daily use, the MS838 features a 1.5 metre drop resistance, IP42-rated protection, and supports multiple barcode symbologies. Whether at the point-of-sale or on the stock floor, it provides fast, accurate decoding—all at a cost-effective price point.
Product Features
- Wired USB Interface: Simple plug-and-play setup with universal USB compatibility.
- Reads 1D and 2D Barcodes: Scans both printed and on-screen codes including QR, Data Matrix, PDF417.
- Fast & Accurate Scanning: 60 frames per second scan speed with 4 mil high-density resolution.
- Reliable CMOS Sensor: Provides quick response and precise barcode recognition.
- Durable Construction: Drop tested to 1.5 metres and sealed to IP42 for dust and light water protection.
- Ergonomic Design: Lightweight and comfortable for extended use in busy environments.
- Instant Feedback: LED and buzzer indicators confirm successful scans in real time.
- Multiple Operation Modes: Supports trigger and presentation modes for flexible scanning.
Product Specifications
Specification | Details |
Model | Unitech MS838 |
Scan Technology | 2D Imager (CMOS sensor) |
Scan Rate | Up to 60 fps |
Resolution | 640 x 480 pixels |
Minimum Print Contrast | 4 mil (Code 39), 7 mil (QR) |
Scanning Depth | 4 mil: 3.5–18 cm; 7 mil QR: 5–9 cm |
Supported Symbologies | 1D (EAN, Code 39, Code 128, UPC, etc.), 2D (QR, Data Matrix, PDF417, Aztec) |
Connectivity | USB (wired) |
Feedback | LED, Buzzer |
Drop Resistance | 1.5 metres onto concrete |
Sealing | IP42 |
Dimensions | 170 x 73 x 102 mm |
Weight | 200g |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity | 5% to 95% RH non-condensing |
Features
- Wireless
- Non-rugged
- Handheld
- 2D
- USB
- Bluetooth
- Long Range
- Black
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 3 Years
- New
