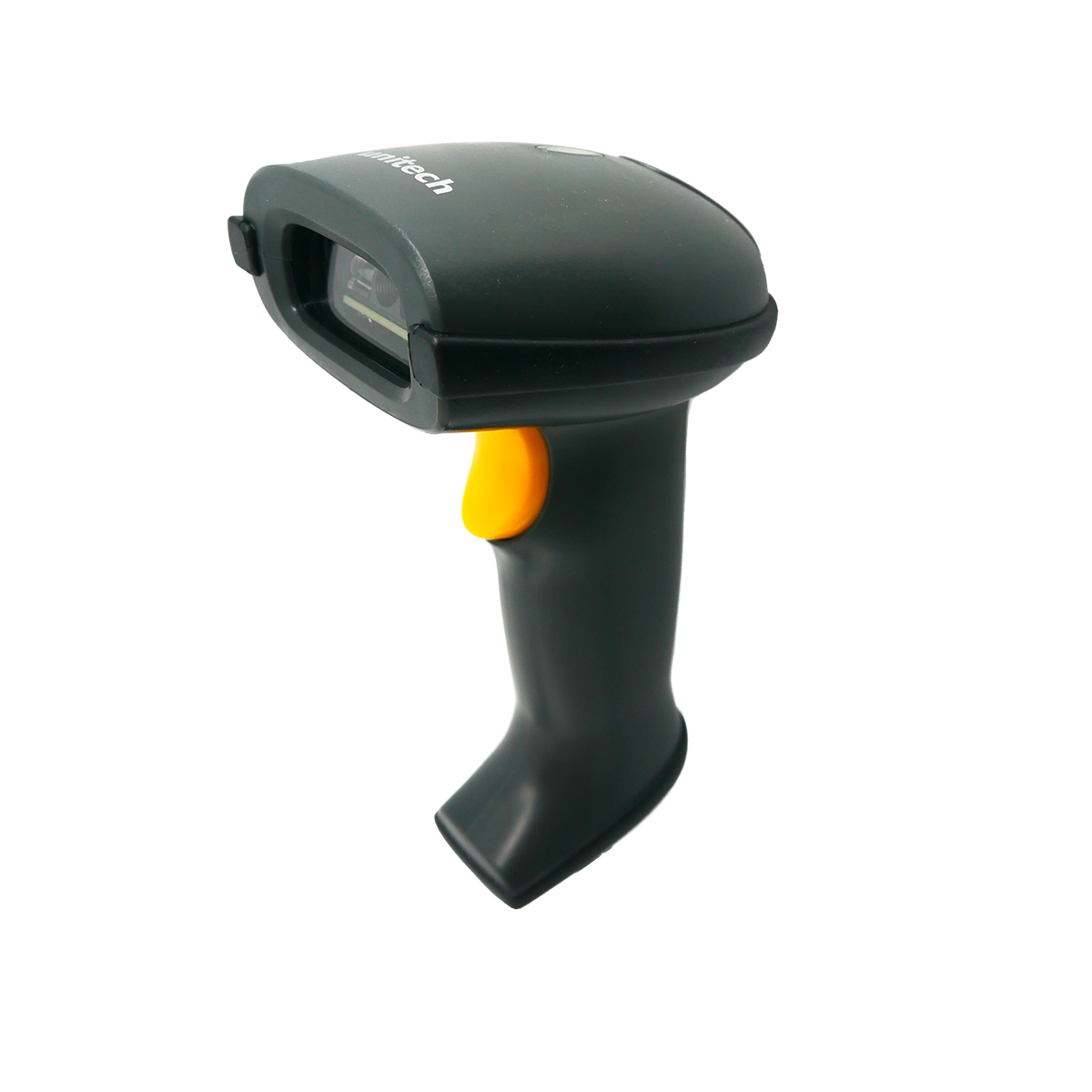

Unitech MS838 2D Imager Barcode Scanner with USB Cable and Hands-Free Stand

Wireless, Non-rugged, Unitech, Handheld, 2D, USB, Bluetooth, Standard Range, Black, General purpose, Entry Level, IP42, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
MS838-2UCB0S-SG

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Unitech MS838 2D imager scanner delivers reliable barcode scanning at an exceptional value. This wireless USB barcode scanner comes bundled with a hands-free stand, making it perfect for high-volume retail, POS, and inventory management environments.

Equipped with a CMOS sensor and fast 60 fps scanning, the MS838 captures both 1D and 2D barcodes effortlessly—including barcodes on smartphone screens. The plug-and-play USB connection ensures easy setup, while the adjustable stand supports hands-free operation for faster checkout or continuous scanning workflows. Ruggedly built with IP42 sealing and 1.5m drop resistance, it is a durable and cost-effective scanning solution.

Product Features

  • USB Wired Scanner with Stand: Plug-and-play USB connectivity with a hands-free stand for seamless scanning.
  • Versatile 2D Imager: Captures both printed and digital 1D/2D barcodes with high accuracy.
  • Fast 60 fps Scan Rate: Smooth and rapid barcode reading without delay or missed scans.
  • Rugged Design: IP42-rated for dust/water resistance and drop-tested up to 1.5 metres.
  • High Density Scanning: Reads high-resolution barcodes as small as 4 mil.
  • Ergonomic and Compact: Lightweight build ideal for daily handheld or stand-based use.
  • Visual and Audio Indicators: LED and buzzer feedback confirm successful scans.
  • Multiple Modes: Supports trigger mode and presentation mode for different workflows.


Product Specifications

Specification

Details

Model

Unitech MS838

Scan Technology

2D Imager (CMOS sensor)

Scan Rate

Up to 60 frames per second

Optical Resolution

640 x 480 pixels

Supported Symbologies

1D (EAN, Code 39, UPC, Code128, etc.), 2D (QR Code, Data Matrix, PDF417, Aztec)

Scan Range

4 mil (Code39): 3.5–18cm, 7 mil (QR): 5–9cm

Connection Type

USB (wired)

Drop Resistance

1.5 metres onto concrete

Sealing Rating

IP42

Dimensions

170 x 73 x 102 mm

Weight

200g

Indicators

LED and Buzzer

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 60°C

Humidity

5% to 95% RH non-condensing



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Unitech
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Bluetooth
Scan Range:
  • Standard Range
Colour:
  • Black
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP42
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3994-datasheet.pdf, 659 Kb) [Download]
