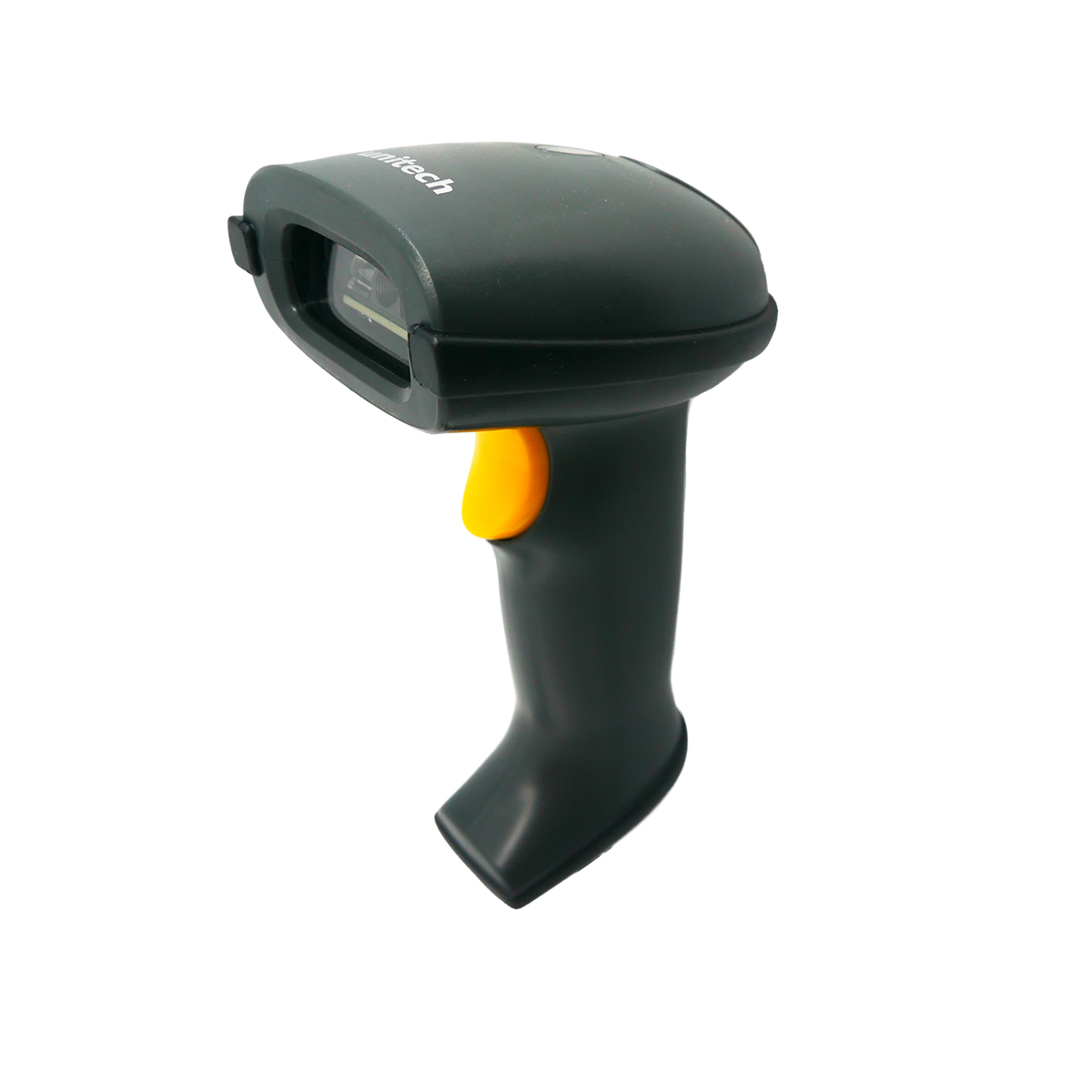

Unitech MS838B 2D SR Wireless Barcode Scanner with Bluetooth, USB Dongle & Cable

Wireless, Non-rugged, Unitech, Handheld, 2D, USB, Serial/RS232, Bluetooth, Standard Range, Black, General purpose, Entry Level, IP42, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
MS838-2UBB0D-SG

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Unitech MS838B 2D SR is a wireless barcode scanner designed for seamless mobility and high-performance scanning. This compact yet rugged scanner features both 2.4G wireless and Bluetooth connectivity, enabling easy pairing with laptops, PCs, and other host devices up to 100 metres away in open range.

With a built-in CMOS 2D imager, the MS838B accurately reads all major 1D and 2D barcodes, including those displayed on digital screens. Thanks to its buffer mode, it continues to store up to 40,000 EAN codes when out of range, ensuring uninterrupted operation. Supplied with an integrated rechargeable battery, USB dongle, and USB cable, this is a plug-and-play wireless scanner ideal for retail, warehousing, logistics, and point-of-sale use.

Product Features

  • Cordless Operation with Dual Connectivity: Supports both 2.4GHz wireless (via USB dongle) and Bluetooth for versatile usage.
  • Reads All Major Barcodes: Captures 1D/2D printed and digital barcodes with high accuracy and speed.
  • Buffer Mode: Stores up to 40,000 barcodes when out of wireless range, perfect for batch scanning.
  • Long Wireless Range: Operates up to 100m (line of sight) for maximum flexibility.
  • Long Battery Life: Up to 16 hours of use on a single charge, with 6-hour full charging time.
  • Fast Scanning Performance: 60 fps scan rate with 4 mil high-density barcode reading capability.
  • Durable Design: IP42-rated with 1.5m drop resistance for rugged environments.
  • Visual & Audio Feedback: LED and buzzer signals confirm every successful scan.
  • Plug-and-Play Setup: Simple integration into existing systems using the included USB dongle and cable.


Product Specifications

Specification

Details

Model

Unitech MS838B (2D SR)

Scan Technology

2D Imager (CMOS sensor)

Optical Resolution

640 × 480 pixels

Scan Rate

60 frames per second

Min. Barcode Size

4 mil (Code 39), 7 mil (QR)

Scan Range

60 frames per second

Connectivity

2.4G Wireless (USB Dongle), Bluetooth (HID, BLE, SPP), USB

Wireless Range

Up to 100 metres (line of sight)

Data Storage

16MB (up to 40,000 EAN codes)

Drop Resistance

1.5 metres onto concrete

Sealing Rating

IP42

Battery

Lithium-ion, 2600mAh, 16+ hours runtime

Charging Time

6 hours (full charge)

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 60°C

Dimensions

170 × 73 × 102 mm

Weight

200g

Symbologies Supported

1D: EAN, UPC, Code 39, 128, etc.; 2D: QR Code, Data Matrix, Aztec



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Unitech
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Serial/RS232
  • Bluetooth
Scan Range:
  • Standard Range
Colour:
  • Black
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP42
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3994-datasheet.pdf, 659 Kb) [Download]
