Unitech MS852-LR 2D Long Range Barcode Scanner Kit – USB, Protective Case, Y-Cable, Rugged Design – 3-Year Warranty

Wireless, Non-rugged, Unitech, Handheld, 2D, USB, Serial/RS232, Long Range, Black, General purpose, Entry Level, IP42, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
MS852-OUCB00-SG

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

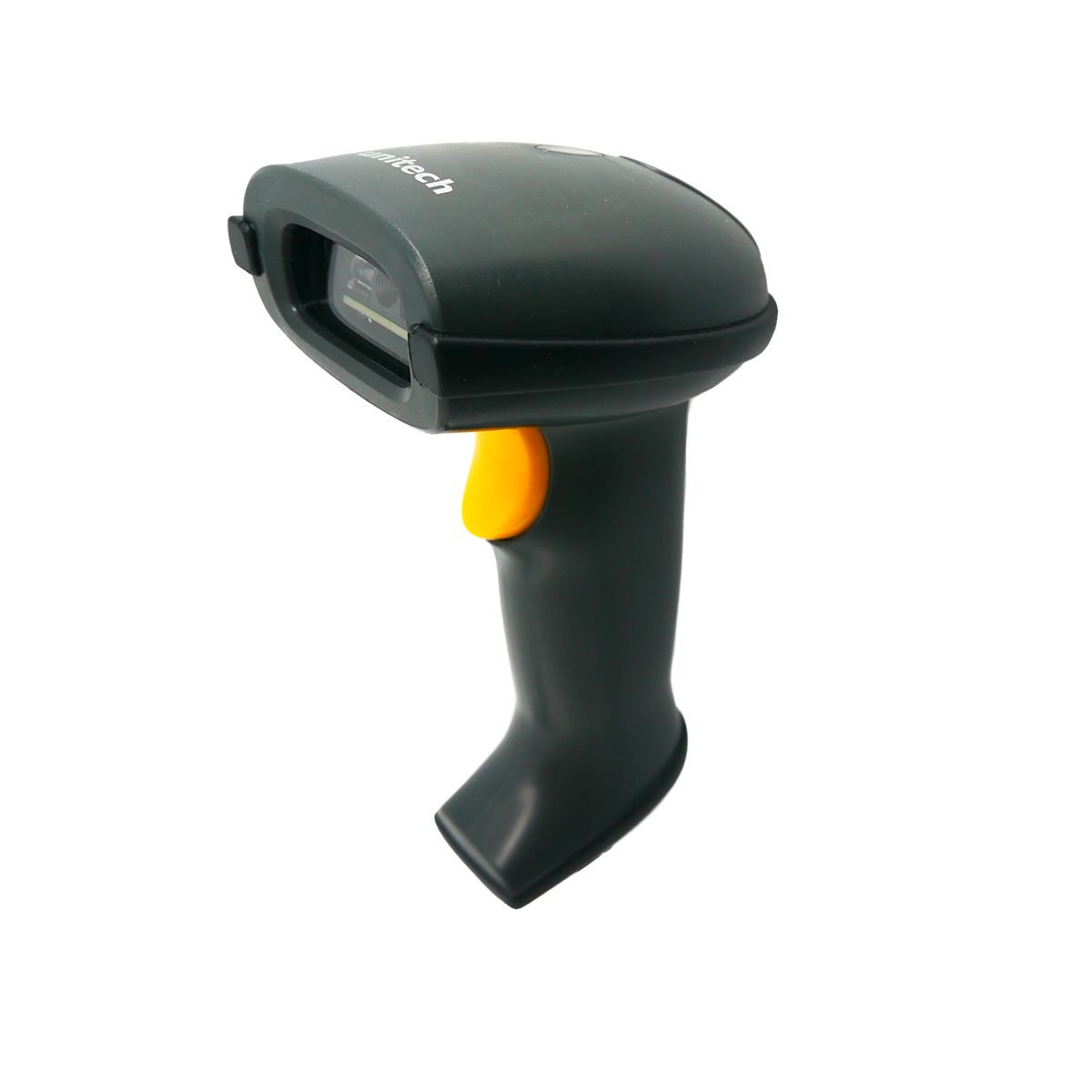

The Unitech MS852-LR is a powerful long-range 2D barcode scanner purpose-built for demanding industrial and logistics environments. Designed to offer both performance and durability, this model can capture standard and long-distance barcodes—even those that are damaged, smudged, or on reflective surfaces.

With its ergonomic design, robust IP42-rated housing, and ability to withstand 2.1-metre drops, the MS852-LR is ideal for high-traffic applications in warehouse, factory, and heavy retail environments. This kit includes a protective case, a 2.0m straight USB cable, and a Y-adaptor cable for enhanced connectivity and durability.

Product Features

  • Long-Range Scanning Capability: Efficiently captures barcodes at extended distances for warehouse and industrial use.
  • Ergonomic & Lightweight: Weighs just 147g (without cable) for all-day handling comfort.
  • Industrial-Grade Durability: Withstands 2.1m drops and features IP42-rated protection from dust and moisture.
  • High Accuracy: Captures most 1D and 2D barcodes even if poorly printed or damaged.
  • User-Friendly Indicators: Equipped with louder beeper and high-visibility LED indicators for clear user feedback.
  • Plug-and-Play Connectivity: USB interface supports quick setup with minimal effort.
  • Trigger Rated for 10 Million Activations: Delivers long-lasting performance under continuous use.
  • Includes Rugged Accessories: Protective case and Y-adapter cable for improved cable management and protection.
  • Auto Switching Modes: Seamless transition between presentation and trigger scanning modes.


Product Specifications

Specification

Details

Scanner Type

2D Imager – Long Range

Connectivity

USB (Straight 2.0m Cable), RS232 via Y-Cable

Drop Resistance

2.1m to concrete

Sealing

IP42 (dust and water-resistant)

Weight

147g (without cable)

Scan Engine

CMOS 640 x 400 pixel

Trigger Life

10 million activations

Supported Barcodes

1D: All major symbologies
2D: PDF417, QR, Data Matrix, Aztec, Micro PDF, etc.

Indicator Feedback

Buzzer and LED

Operating Temperature

-10°C to 50°C

Storage Temperature

-40°C to +70°C

Humidity Tolerance

95% non-condensing

ESD Protection

8kV (contact), 15kV (air discharge)

Depth of Field

Up to 49.5 cm (20 mil Code 39)

Warranty

3 Years (Bench Warranty)

Included Accessories

Scanner, Protective Case, USB Cable, Y-Cable



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Unitech
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Serial/RS232
Scan Range:
  • Long Range
Colour:
  • Black
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP42
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (1998-datasheet.pdf, 2,365 Kb) [Download]
