Description

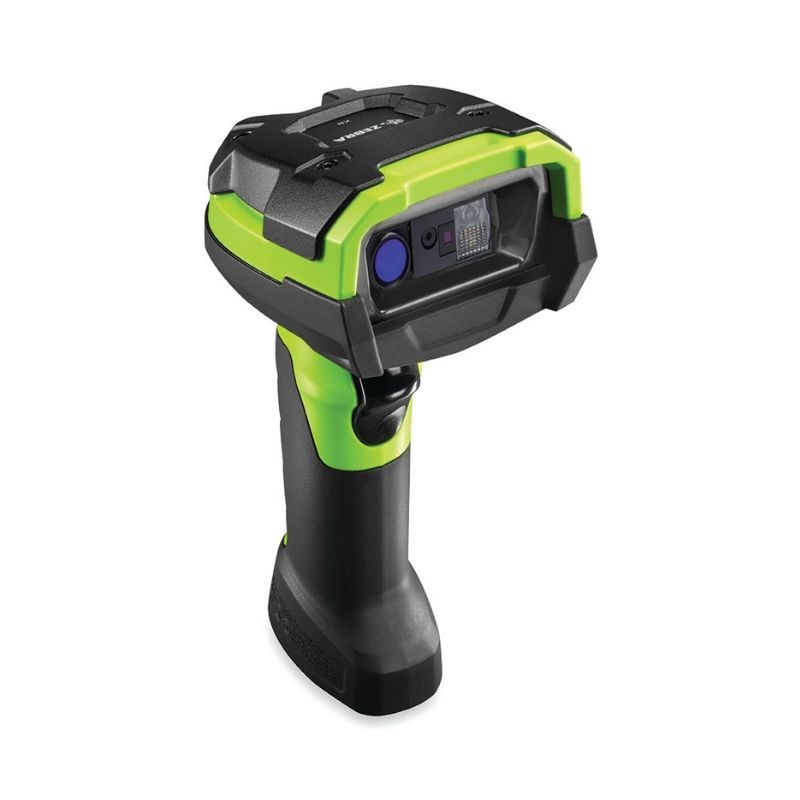

Engineered for extreme environments, the Zebra DS3608-XR ultra-rugged scanner kit delivers superior performance with unmatched durability. Built to withstand harsh warehouse and industrial conditions, this corded scanner enables long-range barcode capture — from just 5 cm to over 32 metres. Equipped with a highly visible green laser aimer, it provides fast, precise scanning even in challenging lighting.
This industrial-grade kit includes the DS3608-XR60003VZWW scanner, CBA-RF5-S07ZAR serial cable, and EA3600-R1CP-00 Ethernet adapter, supporting Ethernet/IP, Modbus TCP, and TCP/IP protocols. Whether it’s high shelves, forklifts, or conveyors — the DS3608-XR enhances workflow efficiency and inventory accuracy like never before.
Product Features
- Extra-Long Range Scanning: Reads 1D and 2D barcodes from 5 cm up to 32 metres, perfect for large warehouses and high racks.
- Rugged Build Quality: IP65/IP68 sealing, drop-tested up to 3 m, and 7500 tumble durability ensure longevity.
- Industrial Ethernet Connectivity: Direct support for EtherNet/IP, Profinet, Modbus TCP, and standard TCP/IP via included adapter.
- Advanced Aiming System: Green laser aimer improves accuracy in varying light conditions and at long distances.
- Label Parse+ & Multi-Code Formatting: Automatically extracts data from GS1 labels and reads up to 20 barcodes in one scan.
- Flexible Feedback Modes: Includes beeper, vibration, wraparound LED, and Direct Decode Indicator for visual confirmation.
- IoT and Remote Management Ready: Supports Zebra’s IoT Connector, 123Scan, Scanner Management Service, and remote diagnostics.
- DataCapture DNA: Leverages Zebra’s intelligent tools to simplify deployment, management, and integration.
- Wide Temperature Range: Operates from -30°C to 50°C for use in hot or freezing warehouse environments.
- TAA and FIPS 140-3 Certified: Meets government compliance requirements for security and trade agreements.
Product Specifications
Specification | Details |
Scan Technology | 2D Imager with green laser aimer |
Connectivity | Corded (USB, RS232, Keyboard Wedge, Industrial Ethernet) |
Scanning Range | Up to 32 m (depending on barcode type) |
Drop Resistance | Multiple drops to concrete from 3.0 m |
Sealing | IP65 and IP68 (scanner); IP65 (cradle) |
Tumble Rating | 7500 tumbles at 1.0 m |
Ambient Light Immunity | 0 to 107,639 lux |
Image Resolution | Near: 1280 x 800 px, Far: 1920 x 1080 px |
Decode Capabilities | 1D, 2D, Digimarc, IUID, GS1 |
Operating Temperature | -30°C to 50°C (corded) |
Dimensions (Corded) | 18.5 x 7.6 x 13.2 cm |
Weight (Corded) | 308 g |
Input Voltage | Host: 4.5–5.5 VDC, External: 11.4–12.6 VDC |
Software Tools | 123Scan, SMS, Scanner SDK, IoT Connector |
Certifications | FIPS 140-3, TAA Compliant |
Included in Kit | DS3608-XR Scanner, Serial Cable, Ethernet Adapter |
Warranty | 36 months scanner & cradle, 12 months battery (if cordless variant used) |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Ethernet
- Midrange
- Green
- Rugged/Heavy Duty
- Industrial
- IP68
- Logistics/Warehouse
- 3 Years
- New
