Description

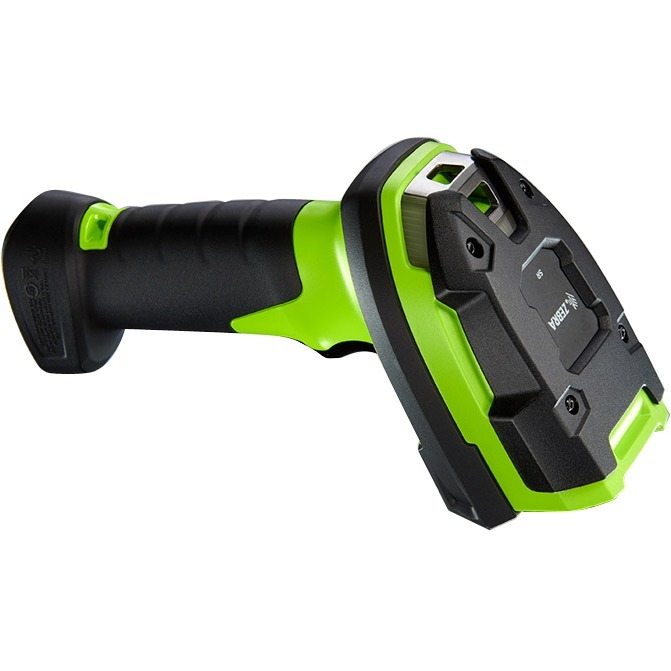

The Zebra DS3608-XR is an ultra-rugged area imager designed to capture 1D and 2D barcodes at extended ranges — from as close as 5 cm up to over 32 metres. Featuring a highly visible industrial green laser aimer, this corded scanner ensures fast, accurate scanning in various lighting conditions and demanding industrial environments. Built to withstand multiple 3-metre drops and sealed to IP65/IP68 standards, the DS3608-XR is perfect for warehouses, manufacturing, distribution, and logistics applications. It offers advanced data capture capabilities, including multi-barcode reading and GS1 label parsing, supported by superior durability and powerful management tools.
Product Features
- Extended Range Scanning: Read barcodes from 5 cm up to 32 metres for flexible inventory management.
- Industrial Green Laser Aimer: High-visibility aiming beam improves accuracy and ease of use across various lighting environments.
- Ultra-Rugged Design: Withstands multiple 3.0 m (10 ft) drops to concrete, tumble tested 7500 times from 1 m, and IP65/IP68 sealing for dust and water resistance.
- Multi-Code Data Formatting (MDF): Scan and transmit multiple barcodes with a single trigger pull in the desired order.
- Label Parse+ Technology: Automatically capture detailed GS1 label data like expiration dates and lot numbers for better inventory tracking.
- Flexible Feedback Modes: Choose from vibration, wraparound LEDs, beep tones, and Zebra’s Direct Decode Indicator for immediate scan confirmation.
- Superior Connectivity: Supports USB, RS232, keyboard wedge, and industrial Ethernet interfaces (EtherNet/IP, Profinet, Modbus TCP).
- Comprehensive Management: Includes Zebra’s 123Scan configuration tool, remote management, diagnostics, and IoT integration for real-time data insights.
- FIPS 140-3 Certified: Ensures compliance for secure government and regulated environments.
- Robust Power Supply: Host-powered with low current draw and flexible input voltage range for stable operation.
Product Specifications
Specification | Details |
Scanner Type | Area Imager (Extended Range) |
Connectivity | USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP) |
Dimensions (Corded) | 185 x 76 x 132 mm (H x W x D) |
Weight (Corded) | 308 g (10.86 oz) |
Drop Resistance | Multiple 3.0 m (10 ft) drops to concrete |
Tumble Resistance | 7500 tumbles from 1 m (3.3 ft) |
Ingress Protection | IP65 / IP68 (Scanner), IP65 (Cradle) |
Ambient Light Immunity | Up to 10,000 foot-candles (direct sunlight) |
Laser Aimer | 520 nm Industrial Green Laser |
Image Sensor | Near: 1280 x 800 pixels; Far: 1920 x 1080 pixels |
Decode Capability | 1D, 2D, PDF417, DataMatrix, QR Code, Digimarc, IUID parsing |
Operating Temperature | -30°C to 50°C (corded) |
Storage Temperature | -40°C to 70°C |
ESD Protection | ±25 KV air discharge, ±10 KV direct/indirect discharge |
Compliance | FIPS 140-3 Certified, RoHS, CE, FCC Class B |
Warranty | 36 months scanner & cradle, 12 months battery |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Long Range
- Green
- Rugged/Heavy Duty
- IP68
- Logistics/Warehouse
- 3 Years
- New
