Zebra DS3678-HD Ultra-Rugged Cordless 2D High-Density Barcode Scanner Kit – USB Cradle, Power Supply & Cable – Green

Wireless, Rugged, Zebra, Handheld, 2D, USB, Serial/RS232, Midrange, Green, Rugged/Heavy Duty, Mid Level, IP65, IP67, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
DS3678-HD3U4210SFW

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

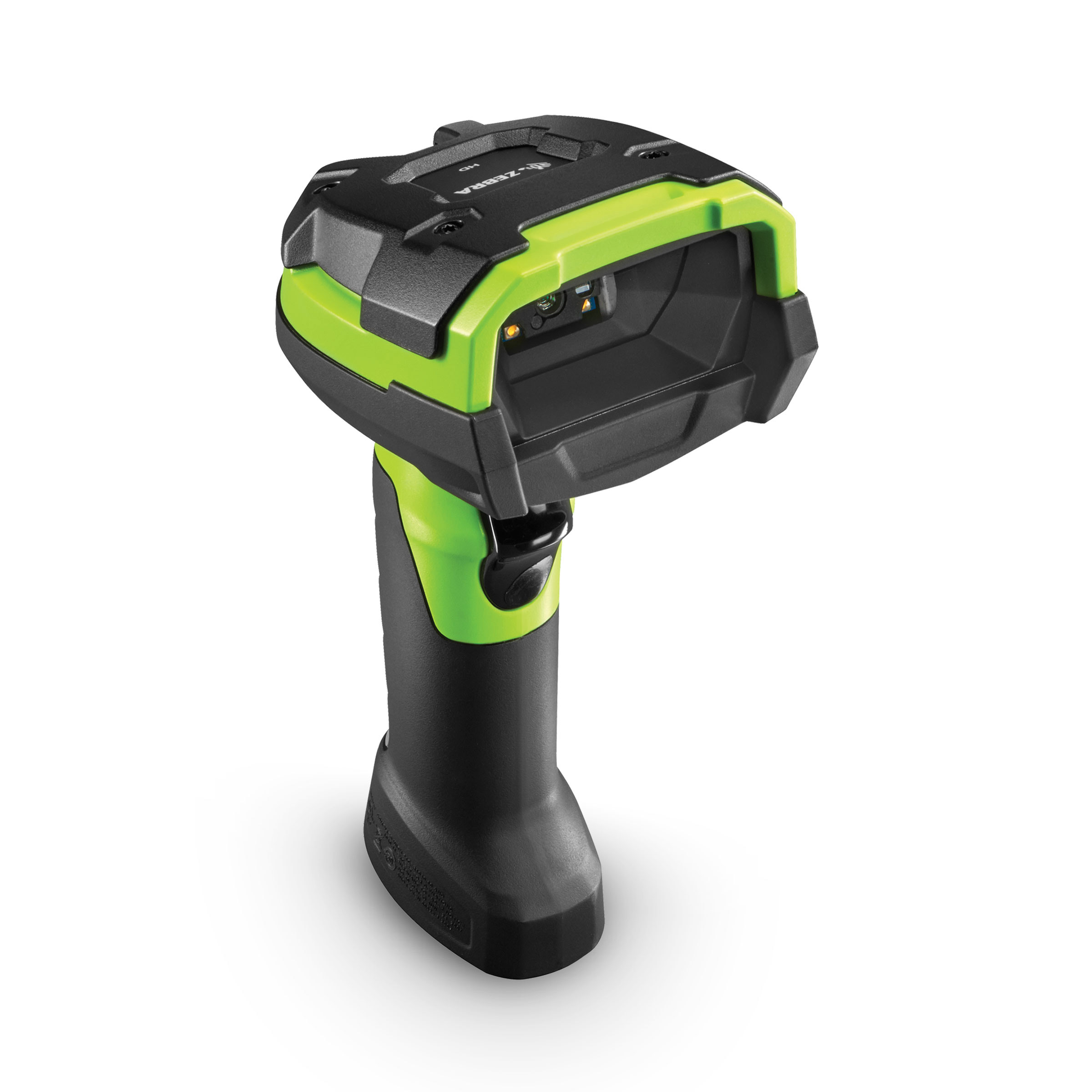

The Zebra DS3678-HD cordless scanner is purpose-built for high-performance 1D/2D barcode scanning in demanding industrial environments such as electronics and medical manufacturing. With industry-leading ruggedness and unmatched decoding performance, it captures tiny, high-density barcodes — even damaged or poorly printed ones — with unmatched speed and accuracy.

This scanner kit includes everything your UK warehouse or production line needs: the DS3678-HD2F003VZWW scanner, shielded USB cable, STB3678 cradle, power supply, and UK line cord. Built to survive 2.4m drops, extreme temperatures, dust, and water immersion (IP67), the DS3678-HD ensures uptime in even the harshest conditions. Enhanced with Bluetooth 4.0 and Zebra's PowerPrecision+ battery, it offers 100,000+ scans per charge and full operational visibility.

Product Features

  • Designed for High-Density Barcodes: Captures 3 mil 1D/2D codes on small labels and electronics components with ease.
  • Ultra-Rugged Build: Survives 8 ft. drops, 5,000 tumbles, and fully sealed to IP65/IP67 for dust, water, and shock resistance.
  • Cordless Convenience with Bluetooth 4.0: Fast, interference-free wireless scanning with up to 100m range.
  • Cradle with IP65 Sealing: Industry-first rugged charging cradle withstands rough environments and supports over 250,000 insertions.
  • Multi-Code & Pick-List Mode: Capture up to 20 barcodes in a single scan and precisely select individual barcodes.
  • Exceptional Battery Life: PowerPrecision+ 3100 mAh battery supports over 100,000 scans per charge.
  • Smart Feedback Options: Choose from visual, audible, and vibration alerts to suit your workflow.
  • Seamless Integration with Zebra’s DataCapture DNA Tools: Manage devices, configure scanners, and track battery health via 123Scan and SMS.
  • Industrial Network Ready: Network Connect enables plug-and-play connection to your Industrial Ethernet system.
  • Compatible with All Zebra 3600 Series Software Tools


Product Specifications

Feature

Specification

Scanner Type

Cordless High-Density 2D Imager

Connectivity

Bluetooth 4.0 (Class 1), USB, RS-232, Keyboard Wedge

Scanning Range

3 mil Code 128: 2.0–3.0 in; 20 mil Code 128: up to 66.0 cm

Image Sensor

1280 x 960 pixels

Drop Rating

Survives drops from 2.4 m (8 ft) to concrete

Tumble Rating

5000 tumbles at 1.0 m

Sealing

Scanner: IP65/IP67; Cradle: IP65

Operating Temperature

Cordless: -20°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

5% to 95% non-condensing

Battery

PowerPrecision+ 3100 mAh Li-Ion, 100,000+ scans per charge

Supported Barcodes

1D & 2D (including DataMatrix, PDF417, QR, Aztec, Han Xin)

Dimensions (Cordless)

18.5 x 7.6 x 14.2 cm

Weight (Cordless)

411 g

Colour

Industrial Green

Kit Includes

DS3678-HD2F003VZWW Scanner, STB3678 Cradle, USB Cable, PSU, Cord

Warranty

3 Years (Scanner & Cradle), 1 Year (Battery)

Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Zebra
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Serial/RS232
Scan Range:
  • Midrange
Colour:
  • Green
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Mid Level
IP Rating:
  • IP65
  • IP67
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3391-datasheet.pdf, 592 Kb) [Download]
