Description

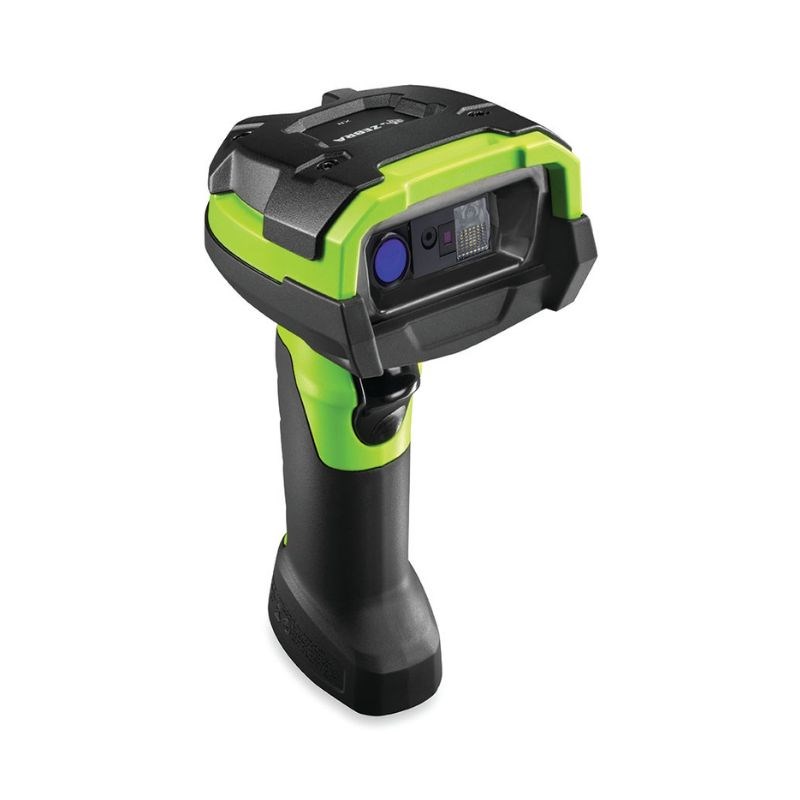

The Zebra DS3678-XR is a cordless ultra-rugged 1D/2D barcode scanner engineered for extreme warehouse and industrial environments. Designed to scan barcodes from near contact to over 100 feet away, this scanner delivers exceptional performance for demanding logistics, manufacturing, and outdoor applications.
This complete USB kit includes the DS3678-XR6F003VZWW scanner, shielded USB cable, ultra-rugged cradle (STB3678), PowerPrecision+ battery, and power supply. With an IP65/IP68 sealing, 80,000+ scans per charge, Bluetooth 4.0, and Zebra’s exclusive technologies like Label Parse+ and Virtual Tether, this device ensures unmatched durability, efficiency, and real-time connectivity across your operations.
Product Features
- Extended Range Scanning: Read barcodes from 3.3 cm to over 32 m (105 feet), including high-density, wide, and reflective codes.
- Ultra-Rugged Design: Survives 10 ft (3 m) drops, 7,500 tumbles, with IP65/IP68 sealing—built for harsh warehouse and outdoor conditions.
- Superior Cordless Technology: 80,000+ scans per charge with Bluetooth Class 1, and PowerPrecision+ battery with health metrics.
- Industrial Cradle: Withstands 250,000+ insertions with Connect+ Contact tech ensuring corrosion-free charging.
- Label Parse+ Capability: Instantly reads GS1 barcodes for expiration, lot number, and manufacturing details.
- Multi-Code Data Formatting (MDF): Capture and transmit multiple barcodes in one scan—sorted for your workflow.
- Wi-Fi Friendly Mode: Avoids interference with 802.11 wireless networks for smooth industrial operations.
- Flexible Feedback Modes: Choose from vibration, wraparound LEDs, beep tone, and decode indicator for intuitive feedback.
- Remote Management Tools: Zebra’s 123Scan, SMS, and IoT Connector enable remote updates, diagnostics, and real-time data integration.
- Complete USB Kit: Includes scanner, shielded USB cable, charging cradle, power adapter, and UK line cord.
Product Specifications
Specification | Details |
Scanner Model | DS3678-XR6F003VZWW |
Scan Technology | 2D Imager with Extended Range Capability |
Supported Barcodes | 1D, 2D, PDF417, QR Code, DataMatrix, Digimarc, Postal, GS1 |
Connectivity | Bluetooth 4.0 (Class 1), USB (Shielded Cable), Industrial Ethernet Supported |
Decode Range | Up to 105.1 ft (32.0 m) depending on barcode type |
Drop & Tumble Spec | 3.0 m drop (cordless), 7,500 tumbles at 1.0 m |
Sealing | Scanner: IP65/IP68; Cradle: IP65 |
Battery Life | 3100 mAh PowerPrecision+ Li-Ion, 80,000+ scans per charge |
Cradle Model | STB3678-C100F3WW |
Charging Contacts | Rated for 250,000+ insertions |
Operating Temperature | -20°C to 50°C (Cordless); -30°C to 50°C (Corded) |
Dimensions (Cordless) | 18.5 cm x 7.7 cm x 14.2 cm |
Weight (Cordless) | 410 g |
Feedback Indicators | Beeper, LEDs, Vibration, Direct Decode Indicator |
Warranty | Scanner & Cradle: 3 years; Battery: 1 year |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Midrange
- Green
- Rugged/Heavy Duty
- Industrial
- IP68
- Logistics/Warehouse
- 3 Years
- New
