Description

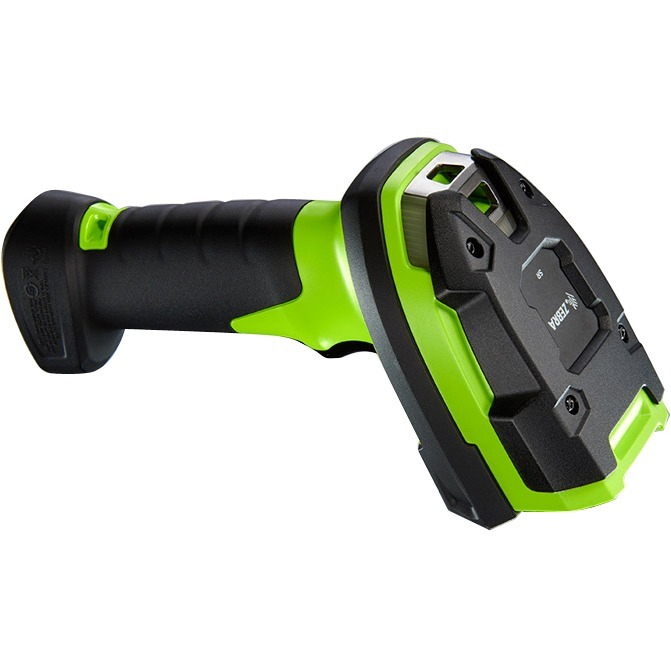

Built to outperform in the harshest industrial environments, the Zebra DS3678-XR is the ultimate rugged barcode scanner for long-range data capture. Designed with Zebra’s extended range SE58 imager, this scanner reads 1D and 2D barcodes from as close as 5 cm to over 32 metres — ideal for warehouse aisles, forklift operations, or even yard management. Its industrial green laser aimer offers high visibility in both bright sunlight and dimly lit settings, ensuring pinpoint accuracy every time.
Equipped with Bluetooth 4.0, a vibration motor, and FIPS 140-3 compliance, this cordless scanner is tailored for mission-critical tasks across warehouses, rail yards, ports, and rugged distribution facilities. With over 80,000 scans per charge and IP65/IP68-rated sealing, the DS3678-XR is built for uninterrupted, high-performance barcode scanning throughout the longest shifts.
Product Features
- Unmatched scanning range: Capture barcodes from 5 cm up to 32 m away with the SE58 extended range imager.
- Ultra-rugged design: Survives multiple 3.0 m drops and 7500 tumbles; IP65/IP68 sealing for dust, water, and debris protection.
- Versatile connectivity: Supports USB, RS232, Industrial Ethernet, and Bluetooth 4.0 with up to 100 m range.
- Long-lasting battery life: Cordless model delivers 80,000 scans per charge with PowerPrecision+ 3100 mAh battery.
- Flexible feedback options: Audible beep, wraparound LEDs, vibration, and decode indicators for error-free scanning.
- Label Parse+ and MDF: Instantly extracts GS1 label data and supports scanning of up to 20 barcodes in a single trigger press.
- Built-in Virtual Tether: Alerts if scanner moves out of Bluetooth range or is left out of cradle too long.
- AutoConfig support: Instantly adapts scanner settings when moved between different workstations.
- FIPS 140-3 certified: Government-grade data security compliance.
- Advanced manageability: Supports 123Scan, Remote Management, and Zebra IoT Connector.
Product Specifications
Specification | Details |
Scanner Type | Rugged Area Imager (SE58 Extended Range) |
Connectivity | Bluetooth 4.0 (Class 1), USB, RS232, Industrial Ethernet |
Bluetooth Range | Class 1: Up to 100 m |
Decode Capability | 1D, 2D, Digimarc, Postal Codes, Composite Codes |
Drop Specification | Up to 3.0 m to concrete (cordless); 2.4 m at low temperatures |
Tumble Specification | 7500 tumbles at 1.0 m |
Sealing | Scanner: IP65/IP68; Cradle: IP65 |
Battery | PowerPrecision+ 3100 mAh Li-Ion (Cordless) |
Scans per Full Charge | 80,000+ |
Operating Temp. | Cordless: -20°C to 50°C |
Weight | Cordless: 410 g |
Image Sensor Resolution | Near: 1280 x 800; Far: 1920 x 1080 pixels |
Minimum Print Contrast | 25% reflective difference |
Aimer Type | 520 nm green laser |
Illumination | 2 warm white LEDs (2700K) |
User Feedback | Beeper, Vibration, LEDs, Direct Decode Indicator |
Warranty | 3 Years (Scanner/Cradle), 1 Year (Battery) |
Certifications | FIPS 140-3, TAA, RoHS, CE, UL, EN, IC, FCC |
Software Tools | 123Scan, SMS, Zebra IoT Connector, Remote Diagnostics |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Extended Range
- Green
- Rugged/Heavy Duty
- Industrial
- IP68
- Logistics/Warehouse
- 3 Years
- New
