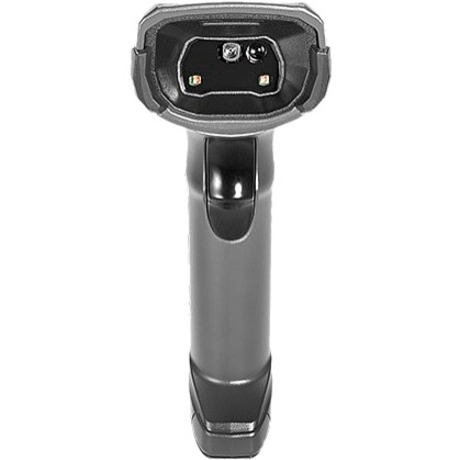

Zebra DS8108-SR Black Corded 2D USB Barcode Scanner Kit – Includes Scanner & Shielded USB Cable

Wired, Non-rugged, Zebra, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, Healthcare, 5 Years, New
GBP £259.00
For Special & Volume Pricing - Call +441749608334
DS8108-SR7U2100AZW
+

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

Deliver unmatched scanning performance and elevate the checkout experience with the Zebra DS8108-SR corded 2D imager. Engineered to outperform conventional barcode scanners, this premium handheld scanner captures virtually any 1D or 2D barcode with speed and accuracy—even those that are damaged, poorly printed, or displayed on mobile screens.

With Zebra’s exclusive PRZM Intelligent Imaging, a powerful 800 MHz microprocessor, and the highest sensor resolution in its class, the DS8108-SR ensures lightning-fast scanning in retail, hospitality, logistics, and light manufacturing environments. This USB kit includes the DS8108-SR scanner and a shielded USB cable for fast, plug-and-play setup. Built with Zebra’s DataCapture DNA suite, the DS8108 is easy to deploy, manage, and integrate with your existing systems, reducing downtime and boosting productivity.

Product Features

  • Superior scan performance on damaged, faded, curved, or electronic barcodes.
  • 800 MHz processor + high-res sensor ensures instant decoding of every 1D/2D barcode.
  • Wide scan range up to 61 cm allows efficient scanning from shopping carts or conveyor belts.
  • PRZM Intelligent Imaging boosts decode speeds and accuracy even in challenging conditions.
  • Multi-Code Data Formatting (MDF) captures multiple barcodes with one scan.
  • Preferred Symbol scanning targets and captures only the required barcode on a label.
  • Label Parse+ supports parsing of GS1 barcodes for inventory and compliance.
  • Wi-Fi Friendly Mode eliminates Bluetooth interference with WLAN networks.
  • Drop-resistant design tested for 6 ft. (1.8 m) concrete drops and 2,000 tumbles.
  • Powered via USB with included shielded USB cable for secure and easy connectivity.


Product Specifications

Specification

Details

Scanner Type

Corded 2D Area Imager

Interface

USB (Shielded Cable Included)

Colour

Twilight Black

Processor

800 MHz

Image Sensor

1280 x 960 pixels

Field of View

48° H x 37° V nominal

Minimum Print Contrast

16% minimum reflective difference

Aiming Pattern

Circular 617nm amber LED

Illumination

Dual 645nm red LEDs

Keyboard Support

Supports over 90 international keyboards

Power Source

USB powered (450 mA typical)

Dimensions

16.8 cm H x 6.6 cm W x 10.7 cm D

Weight

154 g (Scanner only)

Drop Rating

Withstands multiple 1.8 m drops to concrete

Tumble Rating

2,000 tumbles at 0.5 m

Environmental Sealing

IP52

Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

5% to 95% non-condensing

ESD Protection

±15 kV Air, ±8 kV Direct & Indirect

Ambient Light Immunity

Up to 96,840 lux (9,000 foot-candles)

Warranty

5 Years



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Zebra
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Industry/Vertical:
  • Healthcare
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (ds8100-spec-sheet-en-us.pdf, 706 Kb) [Download]
