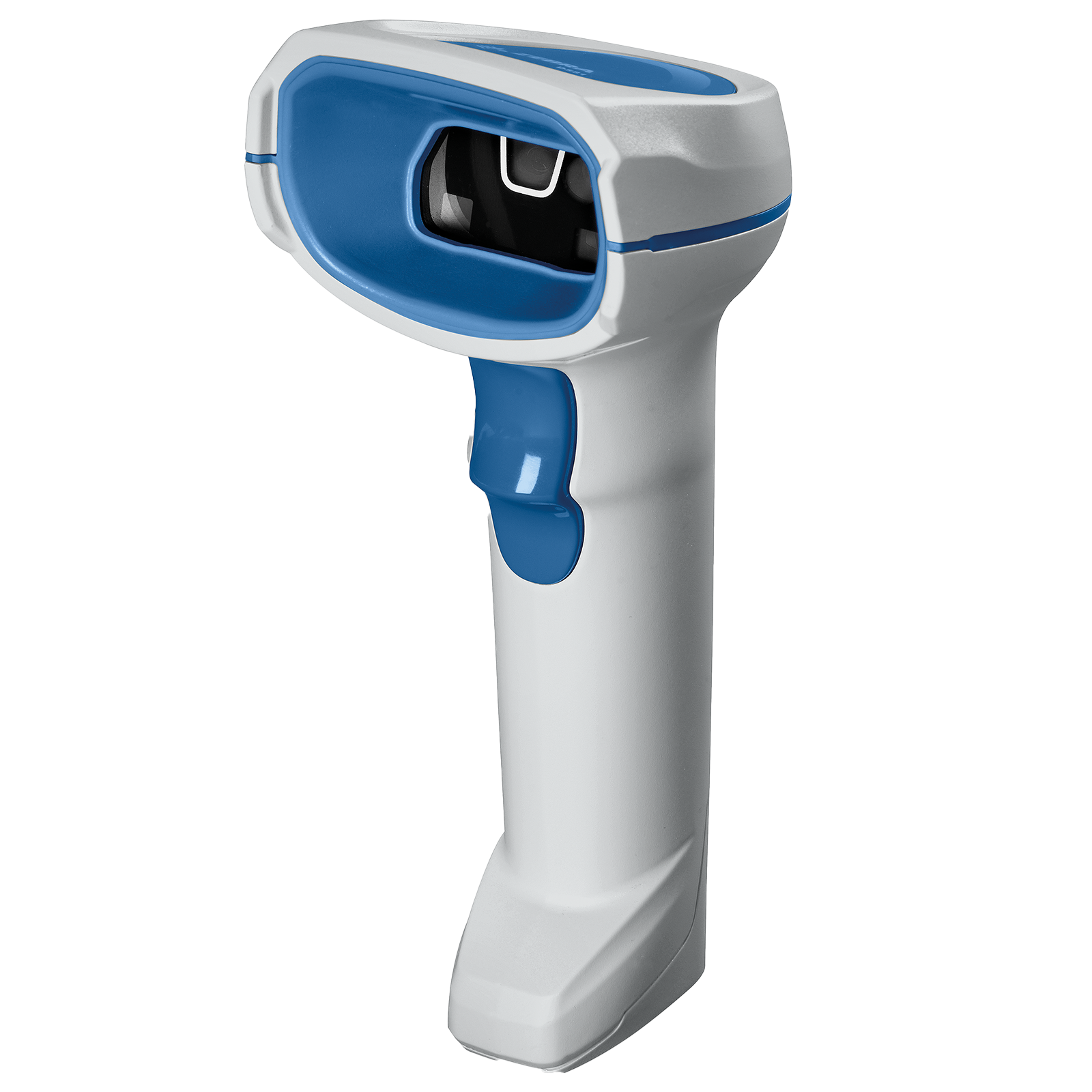

Zebra DS8178-HC FIPS Cordless 2D Healthcare Barcode Scanner with PowerCap & USB Presentation Cradle Kit

Non-rugged, Wireless, Zebra, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
DS8178-HCBU210SP5W

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Zebra DS8178-HC FIPS Cordless Scanner Kit is a premium scanning solution engineered specifically for healthcare environments. Featuring advanced scanning technology, FIPS 140-2 compliance, and a PowerCap™ capacitor for rapid charge and long-lasting operation, this scanner ensures clinicians can capture even the most challenging barcodes in critical moments. The disinfectant-ready housing is designed to prevent bacterial spread, while the compact presentation cradle supports seamless switching between handheld and hands-free modes. With Bluetooth® connectivity, DataCapture DNA tools, and Wi-Fi Friendly Mode, the DS8178-HC enhances clinical workflows, improves patient safety, and streamlines hospital operations

Product Features

  • FIPS 140-2 Certified for secure data capture in healthcare and regulated environments
  • PowerCap™ Capacitor provides 2,000 scans on a full charge and 100 scans after a 35-second boost
  • Disinfectant-ready housing withstands harsh hospital-grade cleaning agents
  • Green LED aiming system safe for NICUs and reduces PTSD-triggering risks
  • Night Mode with Vibrate ensures quiet scanning without disturbing patients
  • Captures the most challenging barcodes on curved, tiny, or reflective surfaces
  • Virtual Tether & AutoConfig prevent misplacement and allow seamless scanner reconfiguration
  • Built-in lamp doubles as a workstation light
  • Wi-Fi Friendly Mode avoids interference with hospital WLAN
  • Supports 1D & 2D barcodes, including UDI, blood bags, and medication packaging


Product Specifications

Specification

Details

Scanner Type

Cordless 2D Imager

Connectivity

Bluetooth v4.0 (Class 1 & 2)

Power Source

PowerCap™ Capacitor (440 F)

Scan Range (Typical)

Up to 42.9 cm (Code 128, 15 mil)

Image Sensor

1280 x 960 pixels

Housing

Disinfectant-ready, IP52-rated, Healthcare White

Cradle

CR8178-PC100FBWW Presentation Cradle (USB Powered)

Drop Spec

Withstands multiple 1.8 m (6 ft.) drops to concrete

Tumble Spec

2,000 tumbles at 0.5 m

Operating Temperature

0° to 50°C

Storage Temperature

-40° to 70°C

Charging Contacts

Zebra Connect+ Contact Technology (anti-corrosive)

Dimensions (Scanner)

16.8 x 6.6 x 10.7 cm

Weight (Scanner)

235.3 g



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Zebra
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3402-datasheet.pdf, 715 Kb) [Download]
