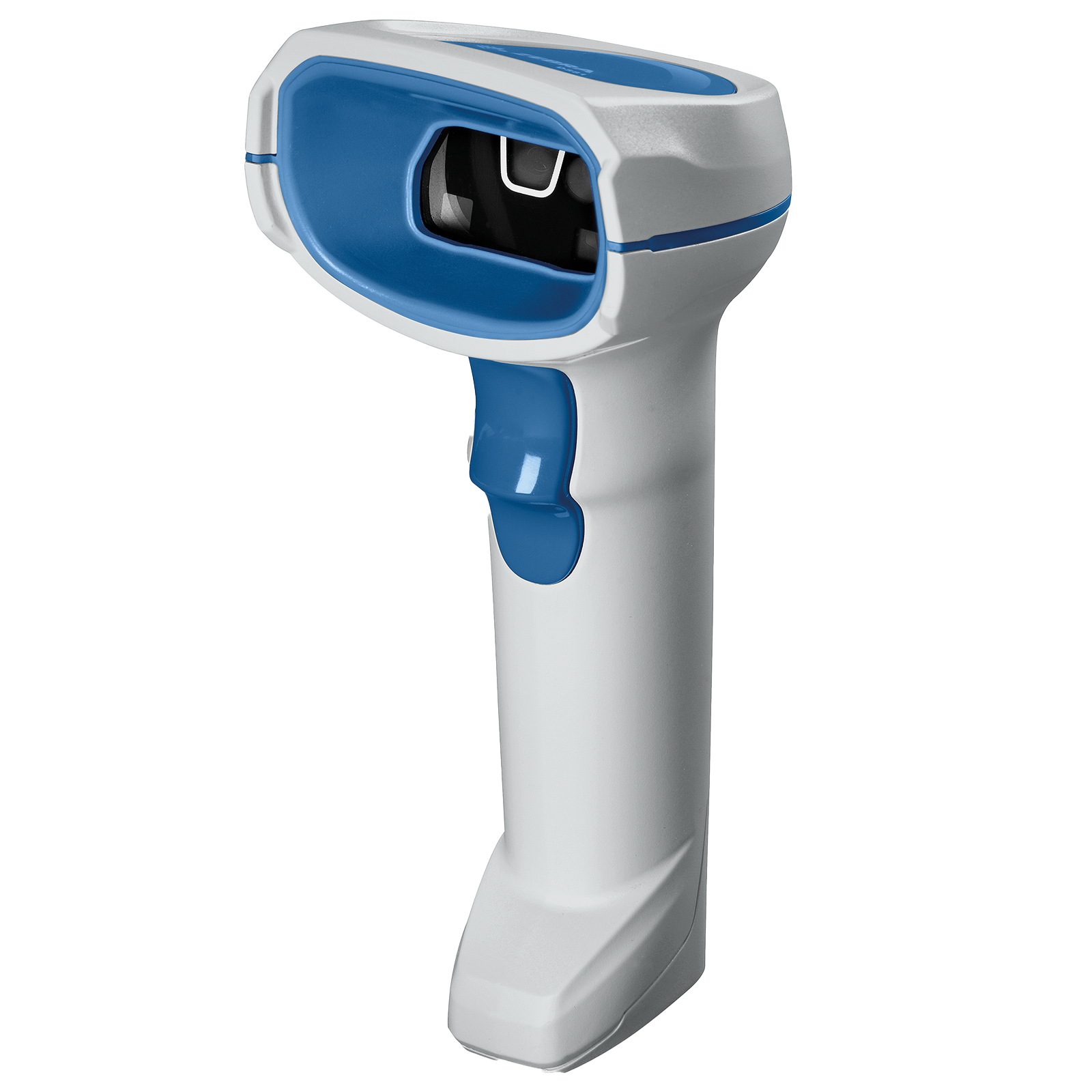

Zebra DS8178-HC FIPS Cordless Healthcare Scanner Kit with Presentation Cradle & USB Cable – White

Wireless, Non-rugged, Zebra, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, Healthcare, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
DS8178-HCBU210FP5W

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

Optimised for clinical efficiency and patient safety, the Zebra DS8178-HC FIPS Cordless Scanner Kit with presentation cradle is a premium healthcare-grade scanning solution. Designed specifically for healthcare environments, this FIPS 140-2 compliant device offers advanced barcode capture for medications, wristbands, lab samples, and blood bags — even under the most challenging conditions. With a disinfectant-ready white housing, fast charging options, and versatile connectivity, the DS8178-HC is the ideal tool for hospitals and medical institutions aiming to enhance workflow productivity while maintaining patient comfort and hygiene standards.

This kit includes the DS8178-HCMF00BVMWW scanner, CR8178-PCM00FBWW presentation cradle, CBA-U21-S07ZBR shielded USB cable, and FAST-PC0081W-Q1 fasteners — everything you need for plug-and-play deployment in any care environment.

Product Features

  • FIPS 140-2 compliant: Secures sensitive data in healthcare environments
  • Cordless Bluetooth scanning: Enhanced mobility and fewer cable hazards
  • High-performance PRZM Intelligent Imaging: Instantly decodes even poor-quality or curved barcodes
  • Healthcare-grade housing: Disinfectant-ready with smooth seams to reduce infection risk
  • Night Mode with Vibration: Silent feedback for quiet wards and night shifts
  • Dual power options: PowerPrecision+ battery or PowerCap capacitor supported
  • Built-in workstation lamp: Illuminates workspace without disturbing patients
  • Virtual Tether: Prevents device misplacement with out-of-range alerts
  • AutoConfig technology: Instantly adapts to different clinical workflows
  • Includes presentation cradle: Ideal for hands-free scanning on crowded carts or counters


Product Specifications

Specification

Details

Scanner Model

DS8178-HCMF00BVMWW

Cradle Model

CR8178-PCM00FBWW (Presentation Cradle)

Included Cable

CBA-U21-S07ZBR (Shielded USB Cable)

Bluetooth Version

4.0 with BLE, Class 1 (100m) and Class 2 (10m)

Charging Time

9 hrs (battery full) / 30 mins (capacitor full)

Drop Spec

Multiple 1.8 m drops to concrete

Tumble Spec

2,000 tumbles at 0.5 m

Sealing

IP52

Connectivity

USB, RS232, Keyboard Wedge, IBM 46XX (RS485)

Weight (Scanner)

235.3 g

Weight (Cradle)

182 g

FIPS Certification

Certified Compliant with FIPS 140-2

Operating Temperature

0°C to 50°C

Imager Resolution

1280 x 960 pixels

Ambient Light Tolerance

Up to 96,840 Lux

Warranty

3 years



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Zebra
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Industry/Vertical:
  • Healthcare
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3402-datasheet.pdf, 715 Kb) [Download]
