Description

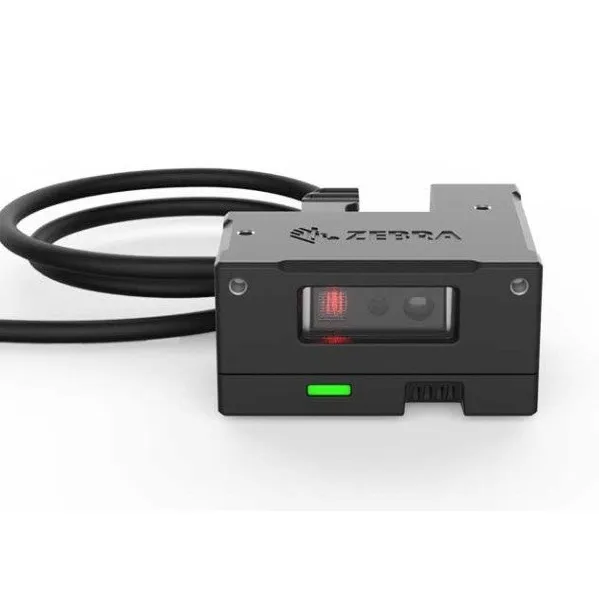

The Zebra MS4717 Fixed Mount Imager is designed for seamless integration into kiosks, ticketing systems, and industrial enclosures. Featuring Zebra’s PRZM Intelligent Imaging technology, it can instantly capture virtually any 1D or 2D barcode, even if damaged, poorly printed, or displayed on mobile devices. With a compact footprint, multiple mounting options, and a rugged design, the MS4717 is ideal for quick-serve restaurants, airports, manufacturing lines, and more. This standard glass, 1.5mm thick configuration ensures durability and performance for everyday presentation scanning applications
Product Features
- PRZM Intelligent Imaging for fast and reliable 1D/2D barcode capture.
- Compact footprint with mounting holes on five sides for flexible integration.
- Durable build with scratch-resistant, chemically-strengthened exit window.
- IP54 sealing for dust and water resistance in standard versions.
- Multiple cable routing options for a clean installation.
- Rolling shutter sensor optimized for presentation mode scanning.
- Supports electronic ticketing, boarding passes, and loyalty cards from mobile screens.
- USB connectivity with standard off-the-shelf cables.
Product Specifications
| Category | Details |
| Weight (Standard) | 3.92 oz / 111 g ± 5% |
| Power Requirement | 5 VDC ± 10% at 480 mA |
| Operating Temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 95% RH, non-condensing at 50°C |
| Sealing | IP54 |
| Image Sensor | 1280 x 800 pixels |
| Field of View | 42° H x 28° V (Nominal) |
| Aimer | Circular 610 nm Amber LED |
| Illumination | 660 nm Red LED |
| Interfaces | USB Certified (USB Full Speed) |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Zebra
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 1 Year
Product Type/Condition:
- New
