Description

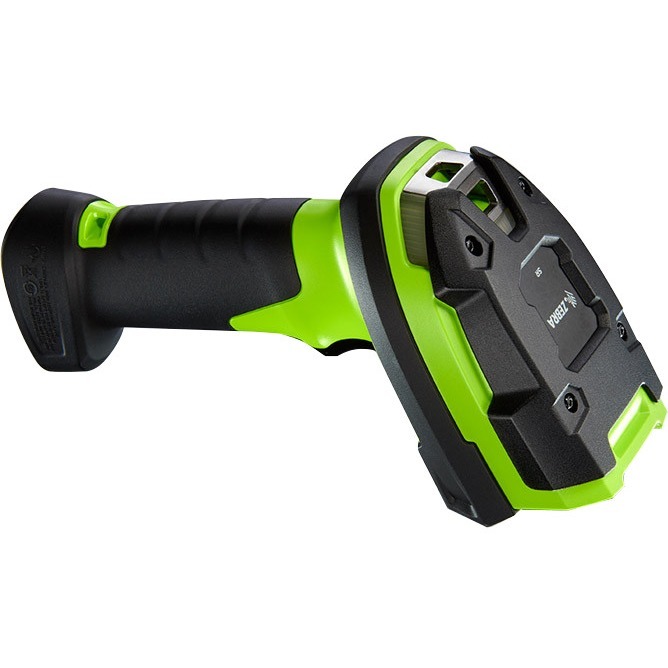

Empower your workforce with the Zebra LI3678-ER FIPS Kit, engineered for unstoppable performance in the most demanding industrial environments. With the ability to read 1D barcodes from as close as 2 inches to as far as 56 feet, this ultra-rugged scanner delivers best-in-class extended range scanning, making it ideal for warehouse racks, pallets, or inventory in motion.
Designed for extreme durability, it survives 10 ft. drops, 7,500 tumbles, and features IP65/IP68 dual sealing for dust, water, and temperature resistance—even freezer-ready. The scanner is equipped with FIPS 140-2 Level 1 validation, ensuring encrypted security in sensitive operations.
This complete cordless kit includes the LI3678-ER2F003VZWW scanner, STB3678-C100F3WW cradle, CBA-U42-S07PAR USB cable, PWR-BGA12V50W0WW power supply, and DC cord (A/C power cord sold separately). Enhanced with Zebra's DataCapture DNA and PowerPrecision+ battery technology, it offers more than 100,000 scans per charge, intuitive feedback modes, and automated configuration through AutoConfig.
Product Features
- Extreme Long-Range Scanning: Capture 1D barcodes up to 56 feet (17.1 m) away.
- FIPS 140-2 Certified: Enhanced government-grade encryption for secure data handling.
- Built for Harsh Environments: Survives 10 ft. (3 m) drops, IP65/IP68 sealed, 7,500 tumbles.
- Cordless Convenience: Bluetooth 4.0 with 100 m range (Class 1), Wi-Fi Friendly Mode.
- Battery Power for Days: Over 100,000 scans per charge with PowerPrecision+ battery.
- AutoConfig via Cradle: Seamless switching between different workflows or applications.
- Flexible Feedback Options: LED indicators, beeper, vibration, and Direct Decode Indicator.
- Cradle IP65-Rated: Industrial-grade with corrosion-resistant Connect+ charging contacts.
- Complete Kit: Includes scanner, cradle, shielded USB cable, DC cord, and power supply (no A/C cord).
- Advanced Management Tools: Compatible with Zebra 123Scan, SMS, and ScanSpeed Analytics.
Product Specifications
Feature | Details |
Scanner Type | 1D Linear Imager (Extended Range) |
Connectivity | Bluetooth 4.0, USB (via cradle) |
Scanning Range | 2 in. to 56 ft. / 5.1 cm to 17.1 m |
Battery | 3100 mAh PowerPrecision+ Li-Ion |
Scans per Charge | 100,000+ |
Cradle Model | STB3678-C100F3WW (IP65 rated) |
USB Cable | CBA-U42-S07PAR Shielded USB |
Power Supply | PWR-BGA12V50W0WW with CBL-DC-451A1-01 DC Cord |
A/C Cord | Not Included |
Drop Rating | 10 ft./3 m to concrete (room temp); 8 ft./2.4 m at -20°C to 50°C |
Tumble Rating | 7,500 tumbles at 3.3 ft./1 m |
Sealing | Scanner: IP65 & IP68; Cradle: IP65 |
Decode Capabilities | All major 1D symbologies (Code 39, UPC/EAN, Code 128, GS1, etc.) |
Temperature Range | -20°C to 50°C (operating); -40°C to 70°C (storage) |
User Indicators | Direct Decode Indicator, LEDs, beeper, vibration |
Bluetooth Range | Class 1: up to 100 m; Class 2: up to 10 m |
Regulatory Compliance | FIPS 140-2, RoHS, EN60950-1, IEC 60825, FCC Part 15, CE Marking |
Part Number | LI3678-ER2F003VZWW |
