Description

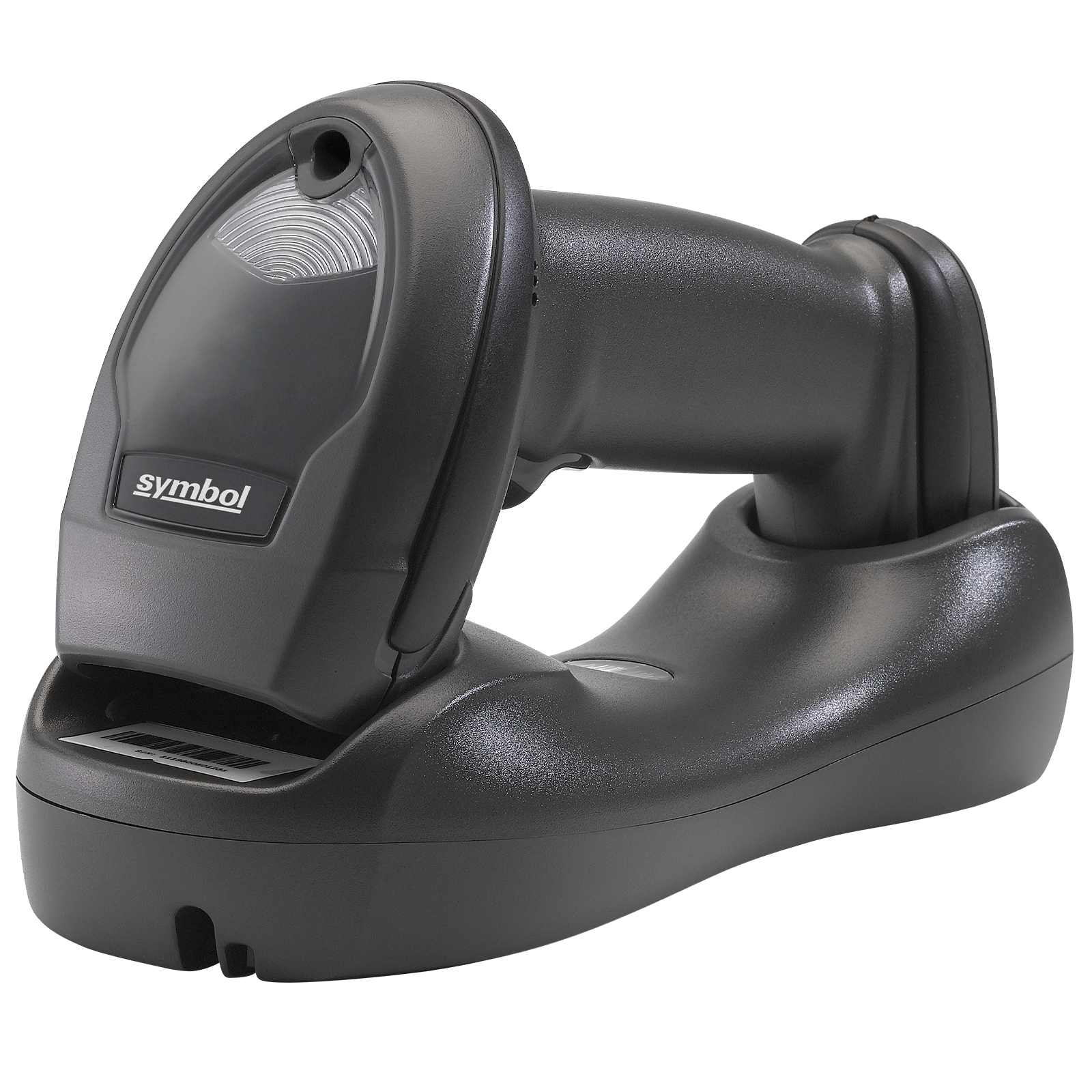

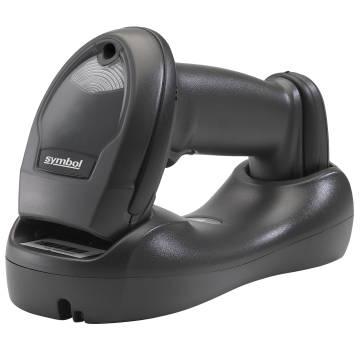

The Zebra LI4278 Handheld Cordless Linear Imager Kit is a high-performance 1D barcode scanner designed for fast, accurate scanning across retail, loyalty, and industrial applications. It reads virtually all 1D barcodes, including those printed on paper labels and displayed on mobile phones, tablets, and computers. This allows seamless processing of loyalty cards, mobile coupons, and high-density industrial codes.
Bluetooth v2.1 connectivity ensures cord-free operation, secure data transfer, energy efficiency, and easy pairing with host devices. The scanner features a patent-pending single-circuit board for superior durability, and its replaceable rechargeable battery provides up to 57,000 scans per charge. Optional desktop or presentation cradles allow for hands-free operation, enhancing workflow flexibility.
Product Features
- Cordless Bluetooth 2.1 Class 2 – secure, reliable wireless scanning.
- Superior 1D scanning performance – reads paper labels, mobile screens, and high-density codes.
- Extended working range – captures barcodes from 1 in./2.5 cm up to 55 in./140 cm.
- Excellent motion and angular tolerance – scan accurately at extreme angles without pausing.
- Rugged design – withstands 100+ drops from 5 ft./1.5 m; presentation and desktop cradles rated for 250,000+ insertions.
- Replaceable rechargeable battery – maximum scans per charge with long lifecycle.
- Flexible operation – optional cradles enable hands-free presentation scanning.
- Batch mode scanning – scan offline and upload automatically when back in range.
- Easy device management – compatible with Zebra 123Scan, Remote Scanner Management (RSM), SMS, and SDK.
- Cost-effective upgrade – compatible with LS4278 cradles and accessories.
Product Specifications
Specification | Details |
Colour | Black |
Scan Engine | 1D Linear Imager |
Connectivity | Bluetooth 2.1 Class 2 |
Scan Pattern | Single bright aiming line |
Scan Speed | 547 scans per second |
Motion Tolerance | 25 in./63.5 cm per second |
Minimum Print Contrast | 15% MRD |
Operating Temperature | 0°C to 50°C / 32°F to 122°F |
Storage Temperature | -40°C to 70°C / -40°F to 158°F |
Humidity | 5% to 85% RH, non-condensing |
Battery | Replaceable rechargeable battery |
Cradle Interfaces | RS-232, RS485, USB, Keyboard Wedge |
Weight | 224 g / 7.9 oz |
Features
- Wireless
- Non-rugged
- Handheld
- 1D
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- Retail
- 3 Years
- New
