Description

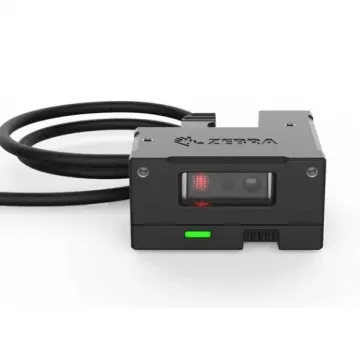

The Zebra MS4717 Fixed Mount 2D Imager is a compact, high-performance scanning solution designed for easy integration into kiosks, ticketing systems, access control points, and other embedded applications. Featuring Zebra’s PRZM Intelligent Imaging technology, it delivers lightning-fast capture of 1D and 2D barcodes, including those that are poorly printed, damaged, or displayed on mobile devices. With multiple mounting options, rugged durability, and plug-and-play USB connectivity, it’s built for seamless installation and long-term reliability.
Product Features
- Compact, flexible mounting – Small footprint with mounting holes on five sides for easy integration into tight spaces.
- PRZM Intelligent Imaging – Superior scanning performance on virtually any barcode condition or surface.
- Multiple configurations – Choose between standard or flush-mount designs, illumination colors, and aimer options.
- Rugged design – Chemically strengthened, scratch-resistant exit window and IP54 sealing for durability.
- USB connectivity – Standard Micro USB connector for off-the-shelf cable compatibility.
- Multiple presentation modes – Supports both software trigger and presentation scanning.
- Wide barcode compatibility – Reads all major 1D, 2D, and postal codes.
- Enhanced vision capabilities – Supports Zebra Aurora™ Vision Studio software for industrial image analysis.
Product Specifications
| Category | Details |
| Weight (Standard) | 3.92 oz (111 g) ±5% |
| Weight (Flush) | 6.67 oz (189 g) ±5% |
| Power (MS4717) | 5 VDC ±10% at 480 mA |
| Image Sensor | 1280 × 800 pixels |
| Field of View (MS4717) | 42° H × 28° V Nominal |
| Sealing | IP54 (Standard), Dust-Sealed (Flush) |
| Drop Spec | Multiple drops at 5 ft (1.5 m) to concrete |
| Interfaces | USB Certified (Full Speed) |
| Supported Symbologies | All major 1D, 2D, and postal barcodes |
| Operating Temp (MS4717) | -4° to 122°F (-20° to 50°C) |
| Storage Temp | -40° to 158°F (-40° to 70°C) |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Zebra
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 1 Year
Product Type/Condition:
- New
