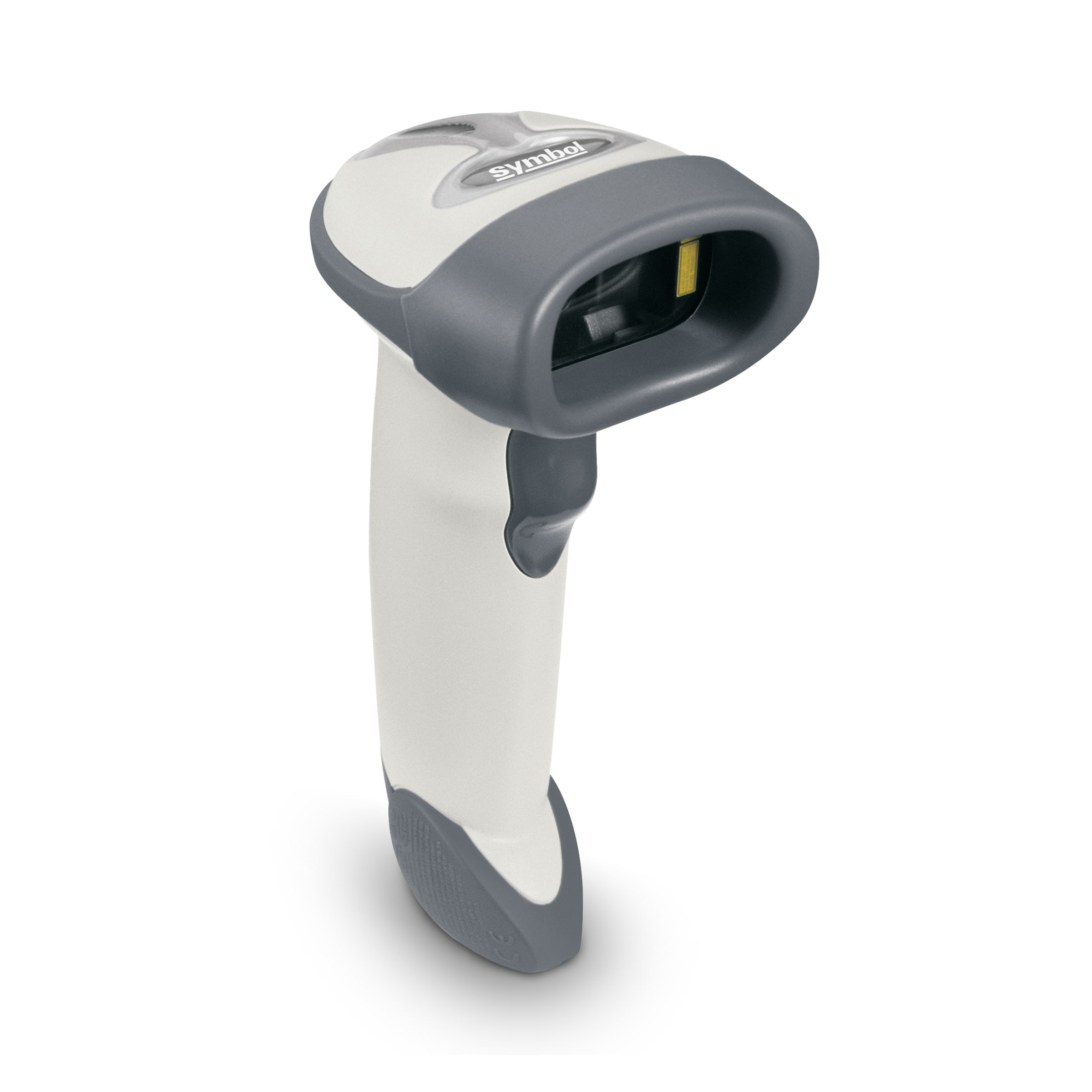

Zebra SYMBOL LS2208 General Purpose Handheld Laser Scanner Kit – White – Keyboard Wedge Cable – Stand

Non-rugged, Wired, Zebra, Handheld, 1D, USB, Standard Range, White, General purpose, Entry Level, Logistics/Warehouse, 5 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 747 411 6863
LS2208-SR20001R-KR

Need Help

Choosing a Product
+44 747 411 6863 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Zebra SYMBOL LS2208 Kit (White, Keyboard Wedge Cable, Stand) delivers reliable 1D laser barcode scanning performance in a lightweight, durable handheld design. This kit includes the scanner, KBW (keyboard wedge) cable, and a hands-free Intellistand™, making it ideal for retail, education, government, and healthcare environments.

Engineered for all-day continuous use, the LS2208 ensures accurate, fast, and efficient barcode capture, reducing checkout lines and improving customer service. Its ergonomic design minimizes user fatigue, while plug-and-play setup allows quick deployment with minimal training.

Tested to withstand 1.5 m drops to concrete and built with scratch-resistant tempered glass, the LS2208 offers long-term durability. With multi-interface support, universal cable compatibility, and included accessories, this kit provides a complete scanning solution out of the box.

Product Features

  • Complete scanner kit: LS2208 Scanner + Keyboard Wedge Cable + Intellistand™
  • High-performance 1D laser scanner with accurate, first-time reads
  • Hands-free Intellistand™ for easy switching between handheld and presentation modes
  • Keyboard Wedge connectivity (KBW cable included)
  • Fast scanning: 100 scans per second
  • Wide working range: 0–43 cm on 100% UPC/EAN
  • Lightweight, ergonomic design for comfortable all-day use
  • Durable construction: withstands multiple 1.5 m drops to concrete
  • Scratch-resistant tempered glass exit window for long-term accuracy
  • Backed by Zebra’s 5-year manufacturer’s warranty.


Product Specifications

CategoryDetails
Scanner Type1D Laser, Bi-directional
Light Source650 nm visible laser diode
Scan Rate100 scans per second
Print Contrast20% minimum reflective difference
Dimensions15.2 cm H × 6.3 cm W × 8.4 cm D
Weight150 g
Operating Temp.0°C to 50°C
Storage Temp.-40°C to 70°C
Humidity5% to 95% non-condensing
Drop ResistanceWithstands multiple 1.5 m drops to concrete
Voltage & Current5V ±10% at 130 mA (typical), 175 mA (max)
Colour OptionsWhite (included), Black (optional)
Warranty5 years manufacturer’s warranty

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Zebra
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 1D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (ls2208.pdf, 257 Kb) [Download]
