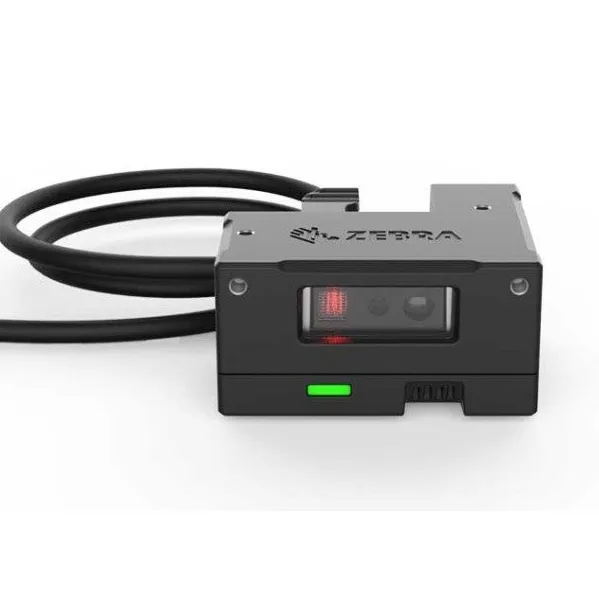

Zebra Technologies Fixed Mount 2D Imager SE4710 – MS4717

From food ordering kiosks in quick-serve restaurants to ticketing systems at airports, the Zebra MS4717 Fixed Mount 2D Imager offers effortless integration, exceptional scanning performance, and rugged reliability.

Part of the MS47 Series, the MS4717 combines a compact footprint with multiple mounting hole locations on five sides, making it easy to fit into tight enclosures. With Zebra’s PRZM Intelligent Imaging technology, it captures virtually any 1D or 2D barcode—whether printed, damaged, low-contrast, or displayed on a mobile screen.

Designed for maximum flexibility, the MS4717 supports standard and flush-mount configurations, offers red illumination with amber LED aimer for everyday applications, and connects via standard Micro USB. Enhanced presentation mode ensures fast, hands-free scanning for high-volume use cases.

Built to withstand multiple drops from 5 ft./1.5 m, IP54 sealing, and a scratch-resistant exit window, the MS4717 is ready for demanding environments such as outdoor kiosks and high-traffic turnstiles. Optional flush-mount designs meet EVA standards, providing a sleek, user-friendly installation.

Whether for retail, hospitality, transportation, government, or logistics, the MS4717 offers proven Zebra quality, easy setup via 123Scan software, and SDKs for multiple platforms—making it the perfect solution for OEMs seeking professional-grade scanning in a compact package.

Product Features

• PRZM Intelligent Imaging for rapid, accurate barcode capture
• Reads all major 1D & 2D symbologies, including damaged and low-quality codes
• Compact design with multiple mounting options
• Standard or flush-mount configurations available
• Red illumination with amber LED aimer for clear targeting
• USB connectivity with off-the-shelf cable compatibility
• Rugged IP54 sealing and scratch-resistant exit window
• Multiple cable routing options for clean installation
• Enhanced presentation mode for hands-free scanning

Product Specifications
