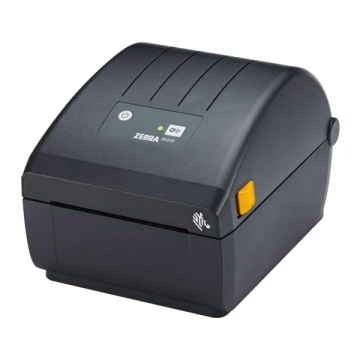

Zebra ZD230 Label Printer - Thermal Transfer - 203 DPI - BT Wifi USB

152 mm/s, Cutter, Tearbar, Zebra, USB, Wlan, Bluetooth, Black, Windows, IOS, Android, 2, New, Thermal Transfer, 203, 4 inch, Monochrome, Desktop
GBP £400.00
(Inc VAT)
ZD23042-30ED02EZ
+

Description

The Zebra ZD230 4-inch Desktop Label Printer offers a cost-effective yet feature-rich solution for businesses needing reliable label printing. Unlike other value printers that cut corners on quality, the ZD230 is built with Zebra’s dual-wall construction, ensuring durability and long-term performance. It supports both thermal transfer and direct thermal printing, providing flexibility for various printing applications.

With USB, Bluetooth (4.1), and Wi-Fi (802.11ac) connectivity, this printer ensures seamless integration into your existing system, whether for retail, logistics, healthcare, or light manufacturing. The 6-inch per second print speed keeps your workflow efficient, while its user-friendly single-button operation simplifies printer management. Designed for easy media loading, the ZD230 helps reduce downtime and improves productivity.


Product Features

  • Reliable and Durable – Built with Zebra’s robust dual-wall construction for long-lasting performance.
  • Flexible Connectivity – Equipped with USB, Bluetooth (4.1), and Wi-Fi (802.11ac) for easy integration.
  • Fast Printing Speed – Prints at speeds of up to 152 mm/sec (6 inches per second) for efficiency.
  • High-Quality Printing – Delivers sharp, professional 203 dpi resolution output.
  • Versatile Compatibility – Supports ZPL II, EPL II, and XML for seamless printer emulation.
  • Wide Media Support – Handles media up to 112mm (4.4 inches) wide with a maximum print width of 104mm (4.09 inches).
  • Easy to Use – Simple single LED indicator and one-button feed/pause function.
  • Energy EfficientENERGY STAR® qualified for lower operational costs.
  • Expandable Memory128MB Flash and 128MB SDRAM allow storage of fonts and graphics.
  • Ideal for Multiple Industries – Perfect for retail, logistics, healthcare, and light manufacturing applications.


Product Specifications

Specification

Details

Print Method

 Thermal Transfer

Resolution

203 dpi (8 dots/mm)

Max Print Speed

152 mm/s (6 inches per second)

Max Print Width

104 mm (4.09 inches)

Max Media Width

112 mm (4.4 inches)

Connectivity

USB, Bluetooth (4.1), Wi-Fi (802.11ac)

Memory

128MB Flash, 128MB SDRAM

Media Roll Diameter

127 mm (5 inches)

Ribbon Length

300m / 74m options

Emulations

ZPL II, EPL II, XML

Media Types

Roll-fed, fan-fold, die-cut, continuous, tags, wristbands

Dimensions

267mm x 197mm x 191mm (Thermal Transfer)

Weight

1.7 kg (Thermal Transfer)

Operating System Compatibility

Windows, iOS, Android

Warranty

2 Years

Features

Cutter Option:
  • Cutter
  • Tearbar
Print Speed:
  • 152 mm/s
Brand:
Zebra
Interface:
  • USB
  • Wlan
  • Bluetooth
Colour:
  • Black
OS Compatibility:
  • Windows
  • IOS
  • Android
Warranty:
  • 2
Product Type/Condition:
  • New
Print Method:
  • Thermal Transfer
Print Resolution-DPI:
  • 203
Max Print Width:
  • 4 inch
Print Type:
  • Monochrome
Printer Type:
  • Desktop

Attachments

Brochure (Zebra_ZD230_DataSheet_EN.pdf, 384 Kb) [Download]
